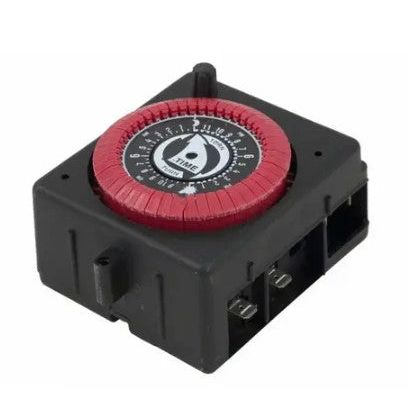

The Intermatic PB913N66 replacement timer mechanism is a 24 hour timer which may be used for for pumps, cleaners and other types of loads. The timer has 3-way mounting; flush in round opening, raised in rectangular opening or on base. Quick-connect terminals for easy installation.


SPECIFICATIONS:
  • 3 1/3 in. H x 2 13/16 in. W x 1 61/64 in. D
  • 120 volts AC
  • SPST switch
  • 24-hour dial
  • Minimum ON time of 1 hour, maximum ON time of 23 hours, increments of 30 minutes
  • Manual override switch
  • 20 amp resistive electrical rating

Has Manual Override Yes

Has Override Switch Yes

Input Voltage Ranges 120 VAC, 60 Hz

Maximum Cycle Time 23 hrs

Minimum Cycle Time 1 hr

Motor

1 HP, 16 FLA, 120 VAC, 60 Hz
2 HP, 12 FLA, 240 VAC, 60 Hz

Mounting Options Panel, Surface, Flush

Number of Circuits 1

Operation Mode 24-hour

Other Certifications and Compatibilities RU

Pilot Duty 360 VA, 120-277 VAC, 60 Hz

Product Depth (in) 1.953

Product Depth (mm) 49.6

Product Height (in) 3.333

Product Height (mm) 84.6

Product Width (in) 2.813

Product Width (mm) 71.4

Resistive 20 A, 120-277 VAC, 60 Hz

Switch Type SPST

Timing Interval 30 min

Tungsten 1250 W, 125 VAC, 60 Hz

Warranty 1-Year limited

Wiring Option

(4) 1/4" male (2) for load (2) for independent clock motor, Terminals

Input Voltage Range(s) 120 VAC, 60 Hz
Mounting Options Flush, Panel, Surface
Number Of Circuits 1
Operation Mode 24 hour
Resistive 20 A, 120 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz
Switch Type SPST
Wiring Option (4) 1/4" male (2) for load (2) for independent clock motor,
Terminals Resistive Load Ratings Ranges 20 A, 120-277 VAC, 60 Hz
Warranty Period 1-Year limited
Captive Trippers 48
Country Of Origin Mexico

Has Manual Override Yes
Has Override Switch Yes
Maximum Cycle Time 23 hrs
Minimum Cycle Time 1 hr
Motor Load Ratings (Ranges) 1 HP, 16 FLA @ 120 VAC, 60 Hz; 2 HP, 12 FLA @ 240 VAC, 60 Hz
Pilot Duty (NO) 360 VA, 120 VAC, 60 Hz, 360 VA, 208 VAC, 60 Hz, 360 VA, 240 VAC, 60 Hz, 360 VA, 277 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 360 VA, 120-240 VAC, 60 Hz
Timing Interval 30 min
Tungsten (NO) 1250 W, 125 VAC, 60 Hz

Product Depth (in) 1.953 Product Depth (mm) 49.6
Product Height (in) 3.333 Product Height (mm) 84.6
Product Width (in) 2.813 Product Width (mm) 71.4
Unit Carton Height (in) 4 Unit Carton Length (in) 3.59
Unit Carton Weight (lb) 0 Unit Carton Width (in) 2.75
