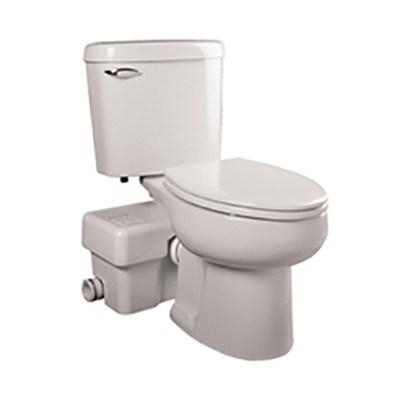

The complete system for convenient addition of a bathroom in remodeling projects and additions. Powerful macerating system pumps waste to existing sewer lines in the building or home – *up to 25' high and 150’ horizontally. Accepts additional lavatory and tub/shower connections for a complete bathroom anywhere!
*Horizontal distance can vary with amount of vertical pumping head. Consult factory for additional sizing and performance information.
Performance: Powerful and quiet, the new RazorCut TM system with stainless steel blades provides superior cutting compared to other macerating toilets.
Appearance: Clean, compact and modular. The new CleanConnect TM seal system eliminates unsightly rubber couplers for connecting the toilet to the macerator box. Rear exiting discharge and vent connectors conceal piping when exiting directly to a wall.
Serviceability: Designed with a new removable access cover, the Ascent TM II is completely serviceable without removing the macerating unit from the toilet or disconnecting plumbing!
Functionality: LED’s inform of power on, alarm condition or low battery condition. Touch pad buttons allow manual by-pass operation of the unit and alarm silencing.
Code Compliant: Meets ADA standards, ANSI 117.1, 1.28 gallon per flush, ASME A112.3.4 and CSA B45.9.
Toilet Features:
Round or Elongated styles available
ADA compliant
HET (High Efficiency Toilet) 1.28 gpf (4.85 lpf)
Improved flush design for one-flush operation
White finish
Installed flush valve kit
2-3/4" Trap
Toilet Seat Included
Insulated tank eliminates sweating in extreme climates
Specifications:
HP: 1/2
Volts: 115
Hz: 60
Amps: 7.9
RPM: 3450
Thermally protected with automatic reset
Alarm: 115 volt with 9 volt battery back up
*Battery Included*
Tank Material: ABS
Cutter Blades: Stainless Steel
Power Cord: 18-3, 8', white. right-angle plug holds to wall
Maximum Fluid Temperature: 104 degrees F., 40 degrees C.
Behind the Wall Extension Available
Macerator unit can be installed behind the wall! To be able to do that you'll need an extension.
HP: 1/2
Volts: 115
Hz: 60
Amps: 7.9
RPM: 3450
Thermally protected with automatic reset
Alarm: 115 volt with 9 volt battery back up
*Battery Included*
Tank Material: ABS
Cutter Blades: Stainless Steel
Power Cord: 18-3, 8', white. right-angle plug holds to wall
Maximum Fluid Temperature: 104 degrees F., 40 degrees C.
