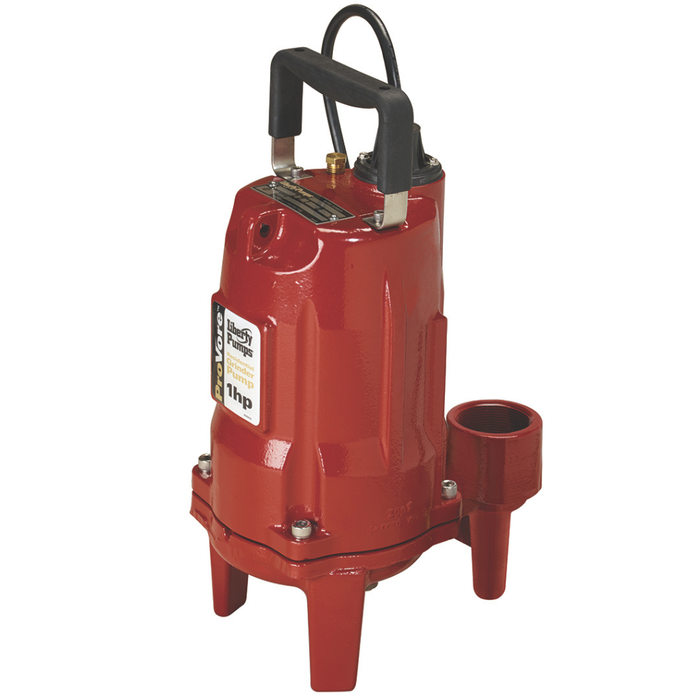

Liberty Pumps - PRG102M - ProVore Residential Grinder Pump, 1HP 230 Volts Manual

Spec Sheet Install Manual

Designed for sewage applications. Higher flow rates allow use with 2" discharge lines.

Features:

• Heavy cast iron construction
• 115V or 230V single phase
• Patented V-Slice cutter technology
• Shreds difficult solids such as feminine products, rags, towels and wipes that can jam a solids-handling style pump.
• Hardened stainless steel cutter and plate
• Oil-filled, thermally protected motor
• PRG-Series residential grinders can be used as a replacement pump in 2" discharge systems using LE40 and LE50-series solids-handling pumps.

Specifications:

• Impeller: Cast Iron, Class 25
• Paint: Powder Coat
• Max Liquid Temp: 60 C / 140 F
• Motor: CSCR style, Class B windings. Oil-filled, thermally protected
• Power Cord Type: SJTW, quick disconnect design 10' standard length.
• Motor Housing: Cast Iron, Class 30
• Volute: Cast Iron, Class 30
• Shaft: 303 Series Stainless Steel
• Hardware: Stainless Steel
• Mechanical Shaft Seal: Unitized Silicon Carbide
• Bearings: Upper and lower, ball bearings
• Cutter and Cutter Plate: V-Slice design. 440 Stainless Steel hardened to Rockwell 57c
• Switch: NO
• HP: 1
• Volts: 230
• Phase: 1
• HZ: 60
• AMPS: 6A
• Discharge: 2"
• Weight: 57 lbs

Impeller: Cast Iron, Class 25
Paint: Powder Coat
Max Liquid Temp: 60 C / 140 F
Motor: CSCR style, Class B windings. Oil-filled, thermally protected
Power Cord Type: SJTW, quick disconnect design 10' standard length.
Motor Housing: Cast Iron, Class 30
Volute: Cast Iron, Class 30
Shaft: 303 Series Stainless Steel
Hardware: Stainless Steel
Mechanical Shaft Seal: Unitized Silicon Carbide
Bearings: Upper and lower, ball bearings
Cutter and Cutter Plate: V-Slice design. 440 Stainless Steel hardened to Rockwell 57c
Switch: NO
HP: 1
Volts: 230
Phase: 1
HZ: 60
AMPS: 6A
Discharge: 2"
Weight: 57 lbs
