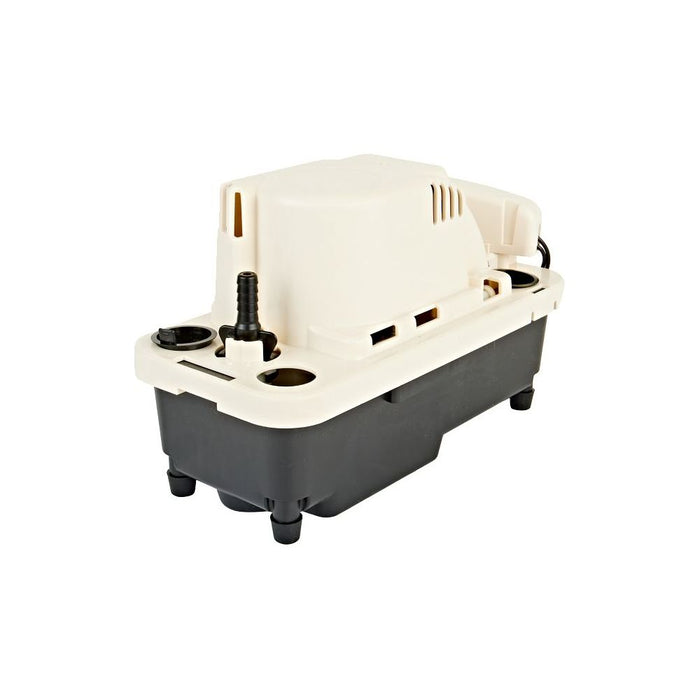

Little Giant 554650 VCMA-20ULST-PRO Condensate Removal Pump, 1/30 hp, 115 V, 6' cord, with Safety Switchand 3/8" ID x 20' tubing and 3/8" Check Valve

Little Giant 554650 VCMA-20ULST-PRO Condensate Removal Pump, 1/30 hp, 115 V, 6' cord, with Safety Switchand 3/8" ID x 20' tubing and 3/8" Check Valve

by Little Giant
SKU VCMA-20ULST-PRO
$ 0.00 - $ 0.00
$ 0.00
$ 68.14
$ 68.14 - $ 68.14
$ 68.14

VCMA-20-PRO Series Condensate Pump

Condensation build-up in air conditioning equipment can wreak havoc on your HVAC system. Little Giant's VCMA-20-PRO Series condensate pump provides a high-capacity option for the automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible. Its slim footprint makes this condensate pump the optimal choice for tight spaces.

Features & Benefits

  • 1/30 hp high-performance motor
  • ABS tank, motor cover, and volute
  • Stainless steel motor shaft
  • Fully automatic start/stop and safety switch operations
  • Thermally protected fan-cooled motor to prevent overheating and possible motor damage
  • "Anti-sweat" tank sleeve included on select models and available separately for all others
  • CSA certified to US and Canada standards

Overview

With the slimmest footprint of all Little Giant condensate pumps, the VCMA-PRO Series of condensation pumps offers the largest installation flexibility. The vertical-type pump features a 3/8" O.D. barbed with 1/4-turn quick release locking discharge adapter with built-in check valve. Three 1-1/8" diameter inlet openings (two fitted with removal cap plugs) allow the pump to be used with multiple types of equipment, including air conditioners and furnace systems.

Specifications

Capacity 84 gph @ 1' / 115 V
78 gph @ 1' / 230 V
Shut Off 21' (6.4 m) / 115 V
19' (5.7 m) / 230 V
Max. Liquid Temp. 140 °F (60 °C)
Discharge 3/8" barbed (9.5 mm)
Impeller Glass-filled Polypropylene
Electrical 115 V, 60 Hz, 1.5 A
230 V, 50/60 Hz, 0.57/0.6 A
Operation Automatic


Performance

Performance

Head GPH (LPH) / 115 V GPH (LPH) / 230 V
1' 84 (318.4) 78 (295.6)
5' 75 (284.3) 67 (253.9)
10' 60 (227.4) 51 (193.3)
15' 42 (159.2) 29 109.9
20' 10 (37.9) 0 (0)



554650 – VCMA-20ULST-PRO

Our VCMA-20-PRO Series effectively delivers high-efficiency condensate removal from air conditioners, gas furnaces, and condensing boilers.




Item: 554650
Model: VCMA-20ULST-PRO


Ratings
HP 1/30 hp
Frequency 60 Hz
Amps - Full Load 1.5 A
Full Load Watts 93 W
Volts 115 VAC
Cord Length 6 ft
Maximum Flow Rate - 60Hz 1.4 gpm / 84 gph
Flow Rate At 1ft 1.4 gpm / 84 gph
Max PSIG 9.1 PSI
Max Flow Rate - 50Hz 1.4 gpm / 84 gph
Shut-Off 21 ft
Safety Switch Yes

Liquid
Max Fluid Temperature 140 °F

Materials of Construction
Pump Base Material Plastic
Pump Body Material Plastic
Check Valve Yes

Installation
Discharge Type Barb
Discharge 0.38 "
Product Length 10.2 "
Product Width 4.8 "
Product Height 6.5 "
Product Weight 5.5 lb
Product Weight w/ Pack 6 lb
Carton Length 12 "
Carton Width 7 "
Carton Height 6.81 "
Tubing Included Yes

Other
Accessories / Repair Kits Tank 154390_x000D_ Rubber Feet 925047_x000D_ Check Valve 3/8" 154724_x000D_ Tank Bracket 154483_x000D_ T-20/25 One carton of 25 pieces of 20' (6.01m) length 3/8" (9.5 mm) ID VC tubing 599033_x000D_ T-3/8 100' (640.1 m) of 3/8" (9.5 mm) ID x1/2" (12.37 mm) OD clear tubing 599107_x000D_ CV-X38 3/8" (9.5 mm) OD rigid plastic or copper tubing 599058_x000D_ Anti-Sweat Sleeve 10000014026_x000D_ Check Valve 1/4" OD 154725
Electrical Agency Approvals CSA/UL
Standard Warranty 36 Months





HP 1/30 hp
Frequency 60 Hz
Amps - Full Load 1.5 A
Full Load Watts 93 W
Volts 115 VAC
Cord Length 6 ft
Maximum Flow Rate - 60Hz 1.4 gpm / 84 gph
Flow Rate At 1ft 1.4 gpm / 84 gph
Max PSIG 9.1 PSI
Max Flow Rate - 50Hz 1.4 gpm / 84 gph
Shut-Off 21 ft
Safety Switch Yes

Discharge Type Barb
Discharge 0.38 "
Product Length 10.2 "
Product Width 4.8 "
Product Height 6.5 "
Product Weight 5.5 lb
