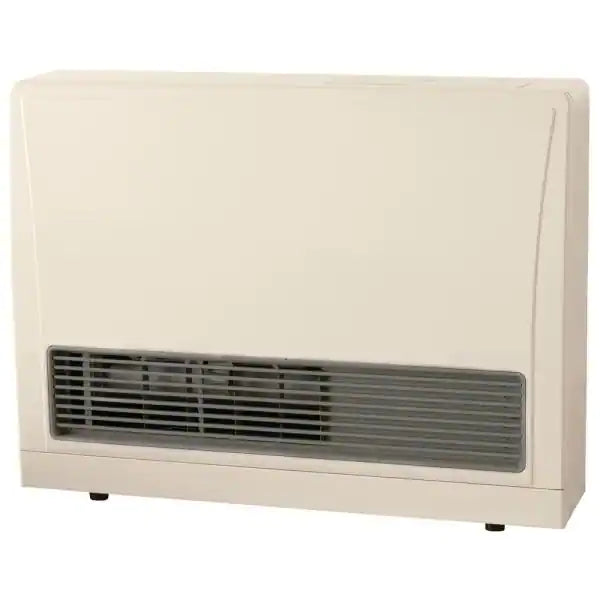

Rinnai - EX22DTP - EX_DT Model Series Propane Gas Direct Vent Wall Furnace

Install Manual Spec Sheet

Consistent Warmth

EX22DTP is a quick, flexible installed, ductless, propane gas, direct vent wall furnace from Rinnai; the perfect supplemental or specific zone heating solution that seeks out cold spots and within seconds begins to gently heat the room or space for maximum comfort. WiFi enabled thermostat connection ready.

See how the Rinnai EnergySaver® Direct Vent can work for you.

With a Rinnai EnergySaver® Direct Vent Wall Furnace, you can be assured of consistent comfort and warmth. Designed to constantly monitor room temperature, Rinnai's unique modulating technology can respond immediately to even the smallest temperature fluctuations.

How It Works

• Constantly monitors room temperature 2"? (5 cm) from the floor
• Consistently detects temperature changes of less than 1° F
• Within seconds, the Rinnai EnergySaver® Direct Vent Wall Furnace begins to gently heat the room
• Fan speed and BTU output increase as necessary to reach the preset temperature
• As the room reaches the desired temperature, the EnergySaver® Direct Vent Wall Furnace reduces fan speed and BTU output
• In case of a sudden influx of cold air, the EnergySaver® Direct Vent Wall Furnace automatically adjusts fan speed and BTU to quickly restore warmth to the room.

Heat is distributed evenly and heat loss is minimized since Rinnai EnergySaver® Direct Vent Wall Furnaces require no ductwork.

USER-FRIENDLY CONTROL PANEL

Manage the temperature in your home with our user-friendly control panel. Simply choose a set temperature or customize heating during the day by programming the timers.

Overview:

• NEW Cabinet Design
• NEW User Friendly Control
• NEW Setback Features
• Standby Power Less than 1 Watt
• Temperature Setting in Celsius or Fahrenheit
• Programmable Thermostat
• Sealed Combustion
• Self-Diagnostic with Error Code Indicator
• "Cool to the Touch" Cabinet
• Child Safety Lock
• 7-State Modulating Gas Valve and Variable Speed Blower
• Whisper Quiet Fan
• 10-Year Heat Exchanger Warranty, 5 Year Parts, 2 Years Labor

• Specifications:

• Color	Beige
  Gas Type	Propane
  Input Range (Low/High)	Propane: 8,200 / 20,700 BTU
  AFUE Rating	81%
  Fan Output (Low/High)	111.3 / 162.7 CFM (3.2 / 4.6 CMM)
  Dimensions	Width: 29.9 inches (760 m) Height: 22.9 inches (582 m) Depth: 10.1 inches (257 m)
  Shipping Weight	57 lbs (26 kg)
  Power Consumption (Electronic ignition)	56 watts
  Standby Power Consumption	Less than 1 watt
  Noise Level	33 - 42 dB
  Total Extended Vent	13 ft. (4 m)
  Total Vertical Vent	10 ft. (3 m)
  Certifications	CSA, ICC-ES-PMG
  Warranty*	10-year on heat exchanger, 5-year on parts, 2-year on labor
  Approved Altitude	10,200 ft. (3,109 m)

• *It is recommended that a trained and qualified professional who has attended a Rinnai training class complete the installation. The warranty may be voided due to any improper installation.




  — Installation and service must be performed by a licensed professional.

Connection Type:
Threaded

BTU (Max):
20700

Fuel Type:
Propane

BTU (Min):
8200

Voltage:
120v

Gas Connection:
1/2"

Efficiency:
81%

Wattage:
56

Air Flow Capacity (CFM):
162.7

Height (Inches):
22.9"

Width (Inches):
29.9"

Depth (Inches):
10.1"

Color:
Beige

Warranty:
10 Year Heat Exchanger/ 5 Year Parts/ 2 Year Labor

Product Height
22.9 in / (589 mm)
Product Width
29.9 in / (760 mm)
Product Depth
10.1 in / (257 mm)
Product Weight
51 lb / (23 kg)
