Rain Bird - 5000+SPCSAM - 4" Series Part-Circle Pattern (40-360 Degree) Shrub Rotor with SAM Check Valve

Spec Sheet Install Manual

Outstanding Results
Superior Distribution Uniformity. 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout.

Superior Wind Resistance
The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money.

Superior Close-in Watering
Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.

• 5000 Series Shrub Rotor with SAM Check Valve, ideal for watering shrubs and hillsides
• NOTE: Shrub rotors do not pop up -- mount above ground on a 3/4" fixed threaded riser
• Includes locking screw to fasten shrub rotor to the riser and Secure Ribs™ to assist in staking.
• Heavy-duty cover assembly for extra durability
• Top-adjust arc adjustment requiring only a flat-blade screwdriver
• 40 - 360° arc rotation and reversing full circle rotation in one
• Radius adjustment screw allows up to 25% radius reduction without changing nozzles

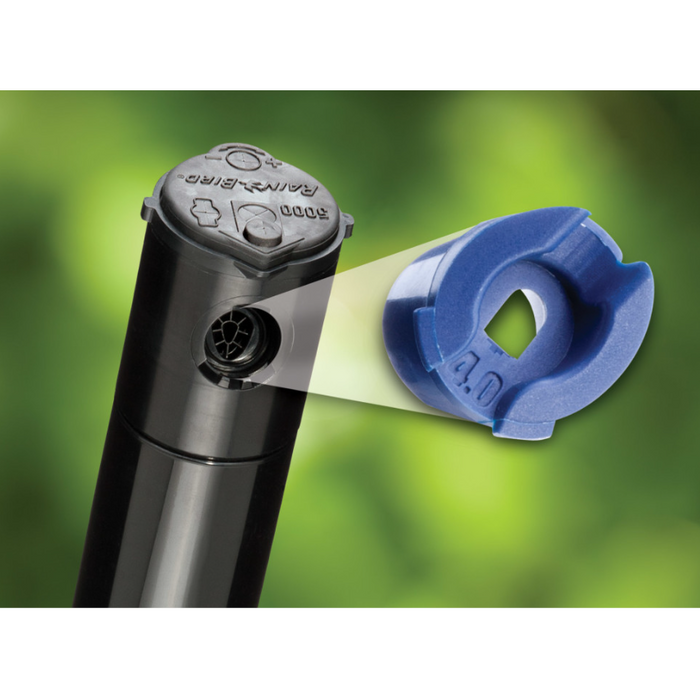

• Rain Curtain™ Nozzles
• Faster maintenance with a new self-cleaning arc adjustment screw
• Slip clutch mechanism for quick adjustment on installation
• Additional O-rings and seals for extra protection in "gritty" water
• Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage

Related Articles

Model 5000SPCS
Rotor Series 5000 / 5000 Plus
Coverage Radius 25-50 ft
Inlet 3/4 in
Features Gear Drive, SAM Seal-A-Matic Check Valve, Rain Curtain Nozzles
Pop-Up Height Shrub (does not pop up)
Operating Range
Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
Radius: 25 to 50 feet (7,6 to 15,2 m)
Radius may be reduced up to 25% with radius reduction screw
Pressure: 25-65 psi (1,7 to 4,5 bar)
Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
Specifications
3/4" (20/27) NPT female bottom threaded inlet

Coverage Arc 40° - 360° Reversing Full and Part-Circle

Pop-Up Height Shrub (does not pop up)
