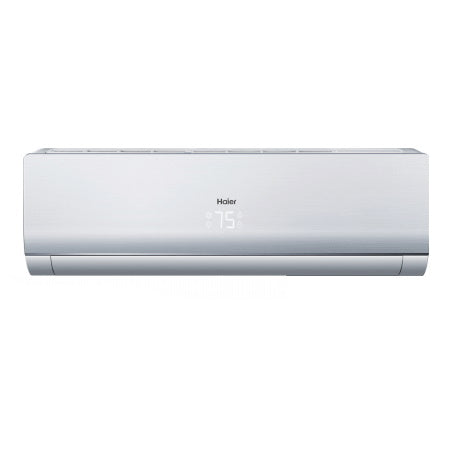

GE Haier - AW18TC2HDA - FlexFit Highwall Indoor Unit 18000 BTUs 208/230 Volts

GE Haier - AW18TC2HDA - FlexFit Highwall Indoor Unit 18000 BTUs 208/230 Volts

by Haier/GE Appliances
SKU AW18TC2HDA
Sold out
$ 409.00 - $ 409.00
$ 409.00
$ 409.00 - $ 409.00
$ 409.00

Spec Sheet  Install Manual

Add with the following Outdoor Unit:

Haier 2U18MS2VHB FlexFit Multi Zone Series Outdoor Unit 18000 BTUs

HAIER 2U18MS2VHB FLEXFIT MULTI ZONE SERIES OUTDOOR UNIT 18000 BTUS

With a single outdoor unit, FlexFit Multi Zone mini split AC series can power from two to four indoor units, keeping several rooms comfortable all year long. You can also control the temperatures in each space individually, giving you flexibility in heating or cooling across several spaces in your home or small business.

Specifications:

  • Rated Cooling Capacity Btu/hr: 18,000
  • Rated Heating Capacity Btu/hr: 19,000
  • Voltage, Cycle, Phase V/Hz/-: 208-230/60/1
  • Airflow CFM (Turbo/H/M/L/Quiet): 540/500/447/365/306
  • Max. Ext. Static Pressure in.W.G: 0.16
  • Indoor Sound dB (Turbo/H/M/L/Quiet): 31/29/23/29/25
  • Height: 7 1/4"
  • Width: 33 1/2"
  • Depth: 16 1/2"
  • Liquid / Suction O.D. in: 1/4", 1/2"
  • Drainpipe Size O.D. in: 1 1/4"
  • Condensate Pump: Standard
  • Max. Drain-Lift height in (mm): 27 1/2"

      WiFi Connect Built in WIFI
      Voltage/Hertz/Phase 208-230/60/1
      Style Highwall
      Series Arctic Multi
      FlexFit Multi
      Required FALSE
      Product Type Multi Zone
      Outdoor Model to Complete Single Zone System Multi Zone System Only
      Outdoor Model to Complete Multi Zone System Select Multi Zone Outdoor Units
      Model Type Indoor
      Indoor Sound Level 48 dBA
      45 dBA
      42 dBA
      39 dBA
      36 dBA
      Fan Speeds CFM 596
      532
      478
      422
      340

      Suction O.D. Refrigerant Line 1/2"
      Package Quantity 1
      Overall Width 39 3/8 in
      Overall Height 13 in
      Overall Depth 8 3/4 in
      Net Weight 28.66
      Liquid O.D. Refrigerant Line 1/4"
      Carton Width 42.7
      Carton Length 11.6
      Carton Height 16
      Approximate Shipping Weight 36
