Intermatic - EI500C - 7-Day Standard Programmable Timer, Ivory

Spec Sheet  Install Manual

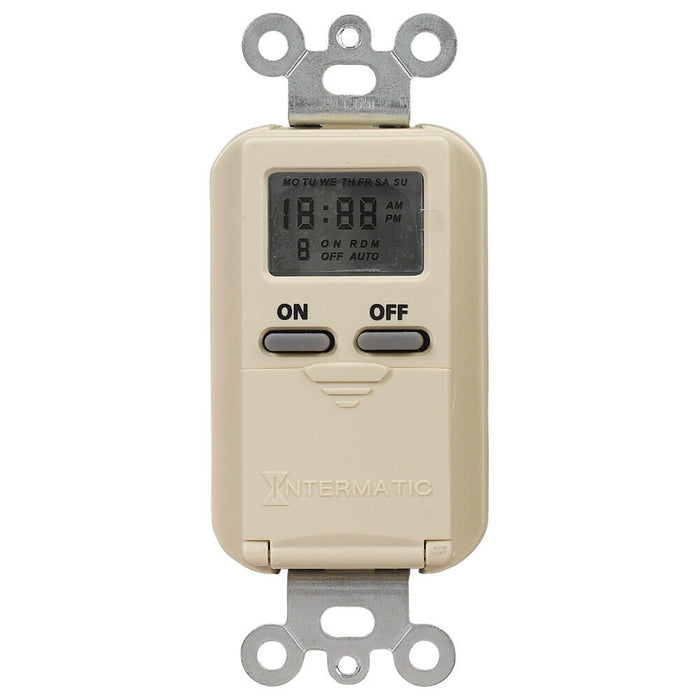

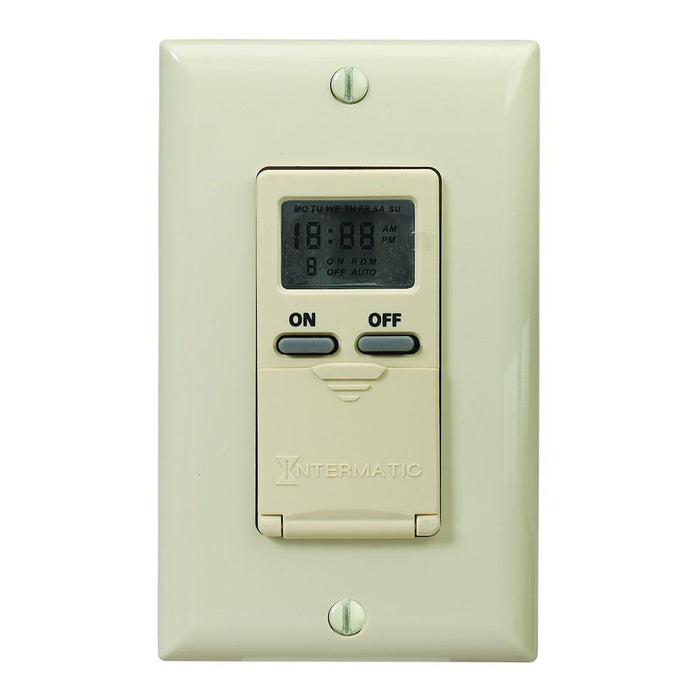

Intermatic EI500C 7-Day Standard Programmable Timer, 125 VAC, 15A, Ivory

For installation on 15 A circuits, this timer provides 24-hour or 7-day programming of lights, fans, pumps and other medium-duty loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features:

• 7-day programmable schedules with 14 ON/OFF events
• Automatic Daylight Saving Time (DST) adjustment
• Random mode varies ON/OFF schedule to provide a "lived-in" appearance
• Single-pole circuit
• Incandescent/fluorescent/CFL/LED compatible
• Built-in rechargeable, non-serviceable battery backup
• Requires neutral connection
• Backlit LCD display
• Decorator switch plate not included

Applications:

• Air Movement & Ventilation
• Indoor Lighting Control
• Outdoor Lighting Control

Specifications:

Backup Type Battery Color Ivory
Input Voltage Range(s) 125 VAC, 60 Hz Maximum ON/OFF Operations 14
Mechanism Type Digital/Electrical Operation Mode 24 hour
Wiring Configurations Single Minimum ON/OFF Times 1 min
Wall Plate Configurations Single-Gang Neutral Connection Required Yes
Warranty Period 1-Year limited Application Compatibilities CFL, Fluorescent, Incandescent, LED
Ballast Fluorescent 8 A, 1000 VA Battery Service Type Non-Serviceable
Battery Type Rechargeable Electronic Ballast LED 4 A, 500 VA
General Purpose 15 A, 125 VAC, 60 Hz Includes Wall Plate Yes
Inductive 1000 VA, 125 VAC, 60 Hz Inductive Load Ratings Ranges 1000 VA, 125 VAC, 60 Hz
Motor (Three-Phase) 1/4 HP, 125 VAC, 60 Hz Motor Three Phase Ranges 1/4 HP, 125 VAC, 60 Hz
Resistive Heater 15 A, 1875 W Tungsten (Incandescent) Range(s) 1000 W
Tungsten Incandescent 1000 W Operating Temperature Max (°C) 40
Operating Temperature Max (°F) 104 Operating Temperature Min (°C) 0
Operating Temperature Min (°F) 32 Product Depth (in) 1.4375
Product Depth (mm) 36.5 Product Height (in) 4.125
Product Height (mm) 104.8 Product Width (in) 1.75
Product Width (mm) 44.5 Unit Carton Height (in) 4.88
Unit Carton Length (in) 2.13 Unit Carton Weight (lb) 0.351
Unit Carton Width (in) 3

Product Depth (in) 1.4375
Product Height (in) 4.125
Product Width (in) 1.75
