Intermatic - EI600WC - 7-Day Heavy-Duty Programmable Timer, 20A, White

Spec Sheet  Install Manual

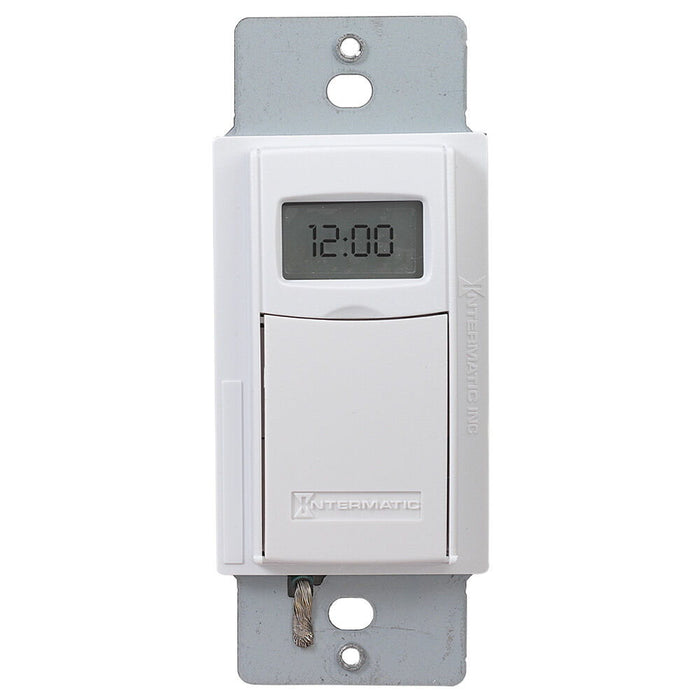

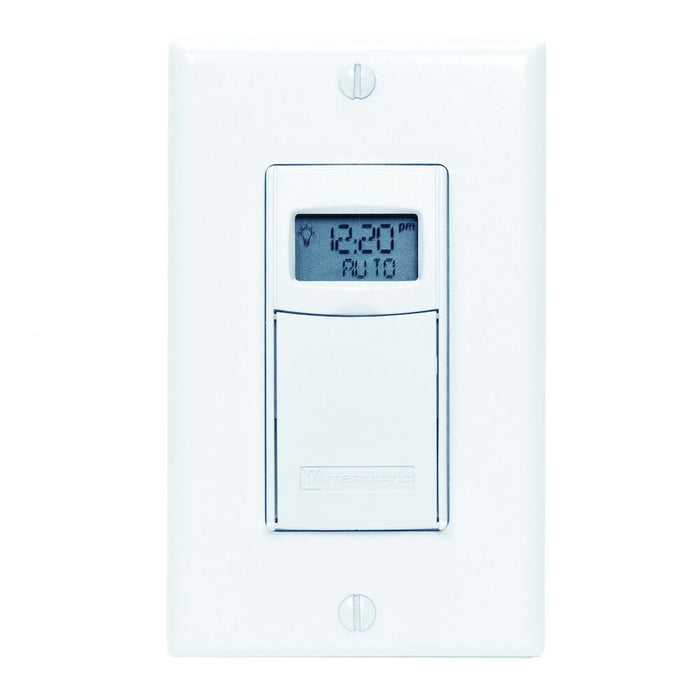

Intermatic EI600WC 7-Day Heavy-Duty Programmable Timer, 120-277 VAC, 20A, White

Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features:

• Versatile 7-day programmable schedules with up to 40 ON/OFF events
• Astronomic clock feature determines dawn and dusk times
• Automatic Daylight Saving Time (DST) adjustment
• Random mode varies ON/OFF schedule to provide a "lived-in" appearance
• Single or 3-way switch compatible installation
• Incandescent/fluorescent/CFL/LED compatible
• Isolated switch allows timer to be used with any load type, including AC and DC loads
• Replaceable CR2 lithium battery provides up to three years of operation
• No neutral wire connection enables easy retrofitting and quicker installation
• Decorator switch plate not included

Applications:

• Air Movement & Ventilation
• Indoor Lighting Control
• Outdoor Lighting Control

Specifications:

Backup Type Battery Color White
Input Voltage Range(s) 120-277 VAC, 50/60 Hz Maximum ON/OFF Operations 40
Mechanism Type Digital/Electrical Operation Mode 24 hour
Switch Type SPST Wiring Configurations 3-Way, Single
Minimum ON/OFF Times 1 min Operation Features Astronomic, Daylight Saving Time
Wall Plate Configurations Single-Gang Neutral Connection Required No
Backup Protection Time 3 years Warranty Period 5-Year limited
Application Compatibilities CFL, Fluorescent, Incandescent, LED Ballast Fluorescent 16 A, 1920-4432 VA, 120-277 VAC
Basic Delivery Free to Customer Yes Basic Delivery Free to Installer Yes
Battery Service Type Replaceable Battery Type CR2 Lithium
DC loads 4 A, 12 VDC; 2 A, 28 VDC Includes Wall Plate No
Inductive 16 A, 120 VAC, 50 Hz, 16 A, 120 VAC, 60 Hz, 16 A, 208 VAC, 50 Hz, 16 A, 208 VAC, 60 Hz, 16 A, 240 VAC, 50 Hz, 16 A, 240 VAC, 60 Hz, 16 A, 277 VAC, 50 Hz, 16 A, 277 VAC, 60 Hz Inductive Load Ratings Ranges 16 A, 120-277 VAC, 50/60 Hz
Max Load Handling Capability 20 A Motor (Three-Phase) 1 HP, 120 VAC, 50 Hz, 1 HP, 120 VAC, 60 Hz, 2 HP, 240 VAC, 50 Hz, 2 HP, 240 VAC, 60 Hz
Motor Three Phase Ranges 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz Rating General Purpose
Resistive Heater 20 A, 2400-5540 W, 120-277 VAC SO Customer Ship Surcharge 0.00
SO Installer Ship Surcharge 0.00 SO Store Ship Surcharge 0.00
Ship to Customer Delivery Option 99 - Manually Assign Ship to Installer Delivery Option 99 - Manually Assign
Ship to Store Delivery Option 99 - Manually Assign Timer Type Astronomical, Digital
Tungsten (Incandescent) Range(s) 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC Tungsten Incandescent 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC
Operating Temperature Max (°C) 40 Operating Temperature Max (°F) 104
Operating Temperature Min (°C) 0 Operating Temperature Min (°F) 32
Product Depth (in) 1.8125 Product Depth (mm) 46
Product Height (in) 4.125 Product Height (mm) 104.8
Product Width (in) 1.75 Product Width (mm) 44.5
Unit Carton Height (in) 4.88 Unit Carton Length (in) 2.13
Unit Carton Weight (lb) 0.472 Unit Carton Width (in) 3

Product Depth (in) 1.8125
Product Height (in) 4.125
Product Width (in) 1.75
