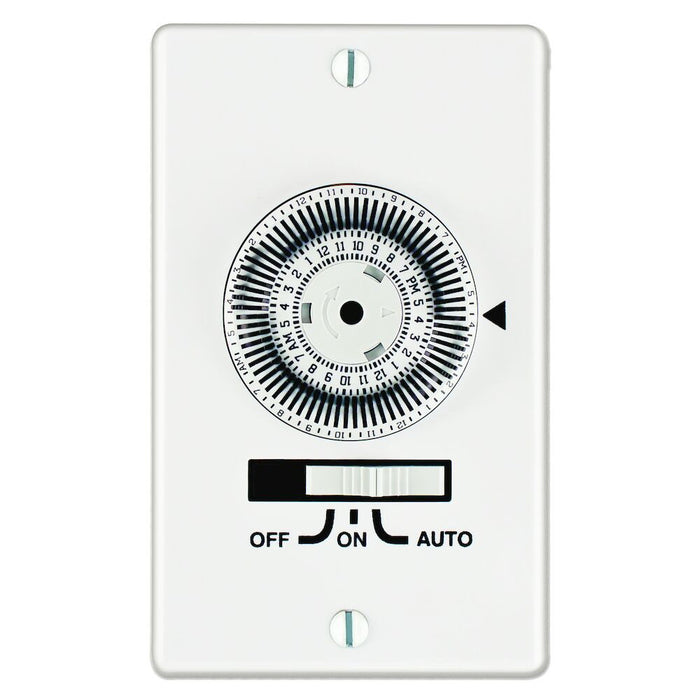

Intermatic - KM2STU-1G - 24-Hour Heavy-Duty Mechanical In-Wall Timer, Timer Only

Spec Sheet  Install Manual

Intermatic KM2STU-1G 24-Hour Heavy-Duty Mechanical In-Wall Timer, Timer Only, 120 VAC, 20A, SPDT, 1-Gang, White

For installing on circuits up to 20 A, this timer provides automatic 24-hour ON/OFF control of outdoor/indoor lighting, fans, pumps, office equipment and other types of loads.

Features:

• 72 trippers provide 36 ON/OFF events per 24-hour period
• Captive trippers with 20-minute switching intervals
• 3-way (SPDT) switch available
• 3-position ON/OFF/AUTO override provides continuous ON or OFF operation
• Reliable synchronous timer motor
• Multiple wall plates available
• Easy wiring and installation
• Heavy-Duty 20 A rating
• Requires neutral connection

Applications:

• Air Movement & Ventilation
• Indoor Lighting Control
• Outdoor Lighting Control

Specifications:

• Color: White
• Maximum ON/OFF Operations: 36
• Resistive: 20 A, 120 VAC, 60 Hz
• Wiring Configurations: 3-Gang, Single
• Wiring Option: SPDT (4) #14 AWG color coded, SPST (3) #14 AWG color coded

• Category: Mechanical In-Wall Timers Web
• Incandescent Multi Gang Load Ratings Ranges: 1350 W, 120 VAC, 60 Hz
• Inductive: 8 A, 120 VAC, 60 Hz
• Motor (Three-Phase): 1 HP, 120 VAC, 60 Hz
• Operating Temperature Max (°F): 180

• Operating Temperature Min (°F): -40
• Input Voltage Range(s): 120 VAC, 60 Hz
• Operation Mode: 24 hour
• Switch Type: SPDT
• Minimum ON/OFF Times: 20 min
• Mechanism Type: Analog/Mechanical
• Warranty Period: 1-Year limited
• Application Compatibilities: CFL, Fluorescent, Incandescent
• Incandescent Load Ratings (Multi-Gang): 1350 W, 120 VAC, 60 Hz
• Inductive Load Ratings Ranges: 8 A, 120 VAC, 60 Hz

• Motor Three Phase Ranges: 1 HP, 120 VAC, 60 Hz
