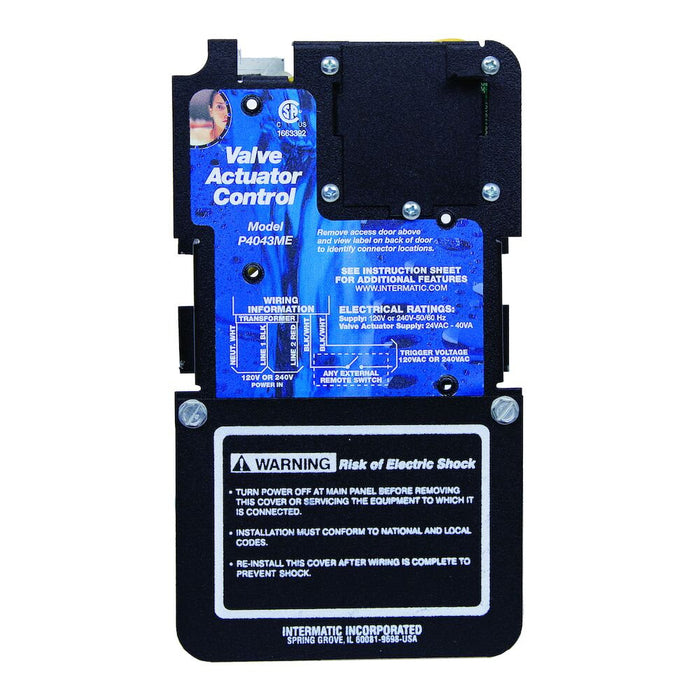

Intermatic - P4043ME - Valve Actuator Control - Mechanism Only

Intermatic - P4043ME - Valve Actuator Control - Mechanism Only

by Intermatic
SKU P4043ME
Sold out
$ 238.23 - $ 238.23
$ 238.23
$ 238.23 - $ 238.23
$ 238.23

Install Manual

This switching device is most suited for controlling electronic valve actuators which direct the flow of water to desired equipment. It can also be used with a spring wound timer or simple switch to control fountains or other aquatic features.

Features:

  • Easily snaps into most existing Intermatic enclosures with available mechanism support bracket
  • Controls up to three valve actuators
  • Switches heater thermostat HIGH/LOW
  • Remote control capabilities

Applications:

  • Valve Control

Specifications:

Input Voltage Range(s) 120/240 VAC, 50/60 Hz Warranty Period 1-Year limited
Actuator Supply Voltage 24 VAC, 40 VA Unit Carton Height (in) 6
Unit Carton Length (in) 9.5 Unit Carton Weight (lb) 1.996
Unit Carton Width (in) 6.38


Input Voltage Range(s) 120/240 VAC, 50/60 Hz Warranty Period 1-Year limited
Actuator Supply Voltage 24 VAC, 40 VA Unit Carton Height (in) 6
Unit Carton Length (in) 9.5 Unit Carton Weight (lb) 1.996
Unit Carton Width (in) 6.38
