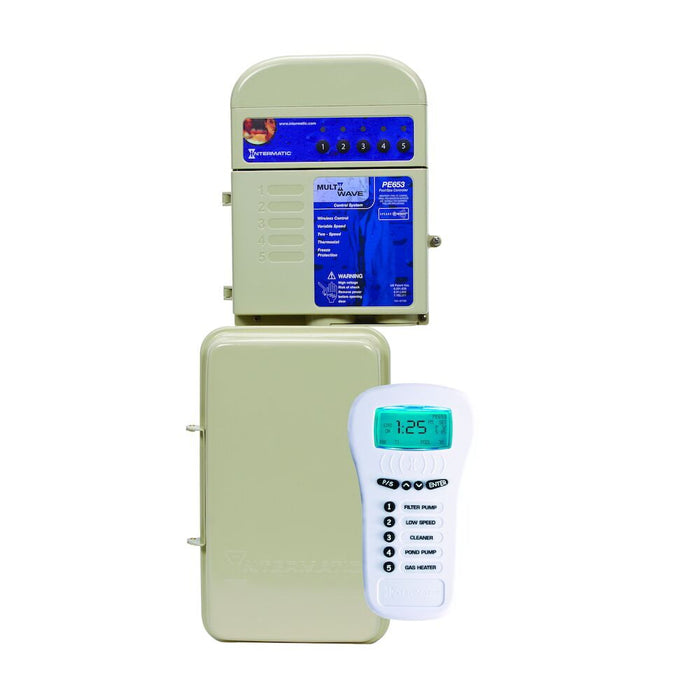

Intermatic - PE653RC - 24-Hour MultiWave® Basic Control , 5-Circuit, Type 3R Metal Enclosure

Install Manual

A wireless electronic controller for pool or spa automation. Retrofit existing mechanical timers or install with new construction. Integrates with home automation software that utilizes Z-Wave wireless technology.

Features:

• Controls 5 circuits
• Controls pumps, lights, cleaners and heaters
• Operates single, two and Pentair® IntelliFlo® and IntelliPro® variable-speed pumps
• 24-hour timing with 3 ON/OFF events per circuit
• Includes receiver, wireless remote, water and air temperature sensors, (3) AA batteries, equipment labels, flathead screwdriver, raintight enclosure, raintight cap and mount for remote mounting antenna
• Type 3R metal indoor/outdoor enclosure
• See MultiWave ECS and ECS Plus Systems for additional control options

Applications:

• Heater Thermostat Control
• Motor Control
• Pump Control

Specifications:

Number Of Circuits 5 Resistive 20 A, 120 VAC, 20 A, 240 VAC
Maximum Power Consumption (W) 5 W Warranty Period 2-Year limited
Circuit 1 Motor Display 80 LRA @120/240 VAC; 17 FLA @120/240 VAC Circuit 1 Resistive Display 20 A
Circuit 2 to 5 Motor Display 60 LRA @120/240 VAC; 10 FLA @120/240 VAC Circuit 2 to 5 Resistive Display 15 A
Knockout Dimensions Back (1) combination 1/2" - 3/4" Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
Knockout Dimensions Left (1) combination 1/2" - 3/4" Knockout Dimensions Right (1) combination 1/2" - 3/4"
Motor (Three-Phase) 17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 Hz Motor Load Ratings Circuits 2 - 5 10 FLA @ 120 VAC, 50 Hz, 10 FLA @ 120 VAC, 60 Hz, 10 FLA @ 240 VAC, 50 Hz, 10 FLA @ 240 VAC, 60 Hz, 60 LRA @ 120 VAC, 50 Hz, 60 LRA @ 120 VAC, 60 Hz, 60 LRA @ 240 VAC, 50 Hz, 60 LRA @ 240 VAC, 60 Hz
Resistive Load Ratings Circuits 2 - 5 15 A, 120 VAC, 15 A, 240 VAC Tungsten (NO) 5 A
Product Depth (in) 3.75 Product Depth (mm) 95.3
Product Height (in) 9.375 Product Height (mm) 238.1
Product Width (in) 5.5 Product Width (mm) 139.7
Unit Carton Height (in) 18 Unit Carton Length (in) 9.312
Unit Carton Weight (lb) 6.087 Unit Carton Width (in) 4.188

Product Depth (in) 3.75
Product Height (in) 9.375
Product Width (in) 5.5
