Intermatic - T101B - 24-Hour Mechanical Time Switch, 120 VAC, Indoor Metal Enclosure

Spec Sheet  Install Manual

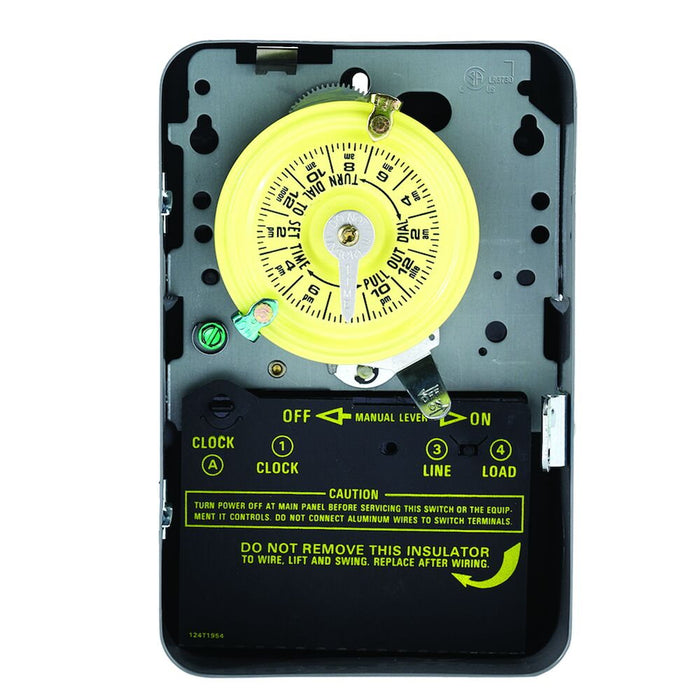

Intermatic T101B 24-Hour Mechanical Time Switch, 120 VAC, 60Hz, SPST, Indoor Metal Enclosure, 1 Hour Interval

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Features:

• Direct 24-hour control of most loads
• Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
• Manual override
• One ON and one OFF tripper included
• Can be installed in most Intermatic enclosures

Applications:

• Indoor Lighting Control
• Timing/Scheduling ON/OFF

Specifications:

Input Voltage Range(s) 120 VAC, 60 Hz Maximum ON/OFF Operations 12
Number Of Circuits 1 Operation Mode 24 hour
Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 347 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz Switch Type SPST
Electronic Ballast 16 A, 120 VAC Enclosure Type Indoor type 1 metal
Minimum ON/OFF Times 1 hour Maximum Power Consumption (W) 3 W
Wiring Option Terminals Resistive Load Ratings Ranges 40 A, 120-480 VAC, 60 Hz
Warranty Period 1-Year limited Application Compatibilities HID, LED
Electronic Ballast Load Ratings Ranges 16 A, 120 VAC Has Manual Override Yes
Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz Inductive Load Ratings Ranges 40 A, 120-277 VAC, 60 Hz
Knockout Dimensions Back (1) combination 1/2" - 3/4" Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
Motor (Three-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz Number of Trippers Included 1 ON/1 OFF
Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz Pilot Duty Load Ratings Ranges 1000 VA, 120-277 VAC, 60 Hz
Skipper Wheel Not Included Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Tungsten Range(s) 40 A, 120-277 VAC, 60 Hz Wire Size Max #8 AWG
Wire Size Min #14 AWG Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 3 7/16
Product Depth (mm) 87.3 Product Height (in) 7 7/8
Product Height (mm) 200 Product Width (in) 5 1/8
Product Width (mm) 130.2 Unit Carton Height (in) 8.25
Unit Carton Length (in) 5.5 Unit Carton Weight (lb) 2.694
Unit Carton Width (in) 3.5

Product Depth (in) 3 7/16
Product Height (in) 7 7/8
Product Width (in) 5 1/8
