Intermatic - T104R201 - 24-Hour 208-277V Mechanical Time Switch, DPST, Pool Heater Protection

Install Manual

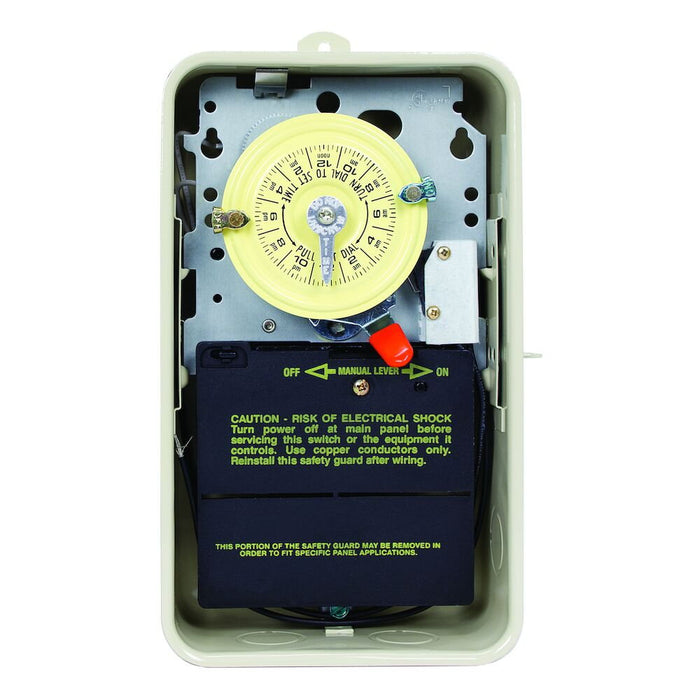

Intermatic T104R201 24-Hour 208-277V Mechanical Time Switch, DPST, Pool Heater Protection, Type 3R Metal Enclosure

Heavy-duty mechanical time switches control a single load.

Features:

• Highest motor load ratings in the industry
• 12 ON/OFF operations per day
• One ON and one OFF tripper included
• Available with pool heater protection
• Teeter-type terminals for multiple load connections

Applications:

• Heater Thermostat Control
• Motor Control
• Pump Control
• Water Circulation

Specifications:

Input Voltage Range(s) 208-277 VAC, 60 Hz Maximum ON/OFF Operations 12
Number Of Circuits 1 Operation Mode 24 hour
Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 347 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz Switch Type DPST
Electronic Ballast 16 A, 120 VAC, 16 A, 208 VAC, 16 A, 240 VAC, 16 A, 277 VAC Enclosure Type Outdoor type 3R metal
Maximum Power Consumption (W) 3 W Wiring Option Terminals
Resistive Load Ratings Ranges 40 A, 120-480 VAC, 60 Hz Warranty Period 1-Year limited
Application Compatibilities LED Electronic Ballast Load Ratings Ranges 16 A, 120-277 VAC
Heater Control Output 10 A, 250 VAC MAX, 60 Hz Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Inductive Load Ratings Ranges 40 A, 120-277 VAC, 60 Hz Knockout Dimensions Back 1/2" and 3/4" combination
Knockout Dimensions Bottom (2) 1/2" and 3/4" Motor (Three-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz
Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz Pilot Duty Load Ratings Ranges 1000 VA, 120-277 VAC, 60 Hz
Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz Tungsten Range(s) 40 A, 120-277 VAC, 60 Hz
Operating Temperature Max (°C) 54 Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 3.625 Product Depth (mm) 92.1
Product Height (in) 10.125 Product Height (mm) 257.2
Product Width (in) 6.5 Product Width (mm) 165.1
Unit Carton Height (in) 4.251 Unit Carton Length (in) 11.751
Unit Carton Weight (lb) 3.493 Unit Carton Width (in) 7.251

Product Depth (in) 3.625
Product Height (in) 10.125
Product Width (in) 6.5
