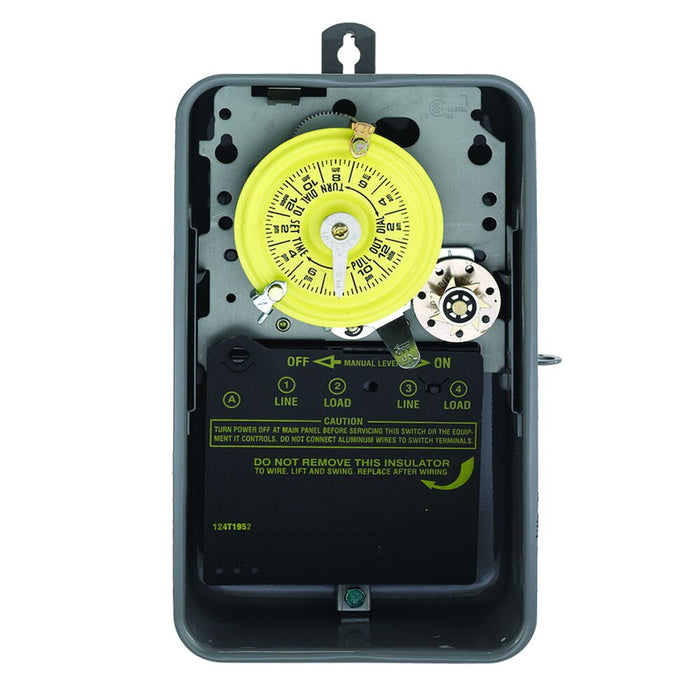

Intermatic T174R 24-Hour Mechanical Time Switch with Skip-a-Day, 208-277 VAC, 60Hz, DPST, Outdoor Metal Enclosure, 1 Hour Interval
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
Features:
- Controls loads up to 40 A per pole
- Direct 24-hour control of most loads
- Up to 10 ON/OFF operations each day
- Minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper and three day-skipper screws included
Applications:
-
Indoor Lighting Control
-
Outdoor Lighting Control
-
Timing/Scheduling ON/OFF
Specifications:
| Input Voltage Range(s) |
208-277 VAC, 60 Hz |
Maximum ON/OFF Operations |
10 |
| Number Of Circuits |
1 |
Operation Mode |
24 hour |
| Resistive |
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz |
Switch Type |
DPST |
| Electronic Ballast |
16 A, 277 VAC, 60 Hz |
Enclosure Type |
Outdoor type 3R metal |
| Minimum ON/OFF Times |
1 hour |
Maximum Power Consumption (W) |
3 W |
| Wiring Option |
Terminals |
Resistive Load Ratings Ranges |
40 A, 120-480 VAC, 60 Hz |
| Warranty Period |
1-Year limited |
Application Compatibilities |
HID, LED |
| Electronic Ballast Load Ratings Ranges |
16 A, 277 VAC, 60 Hz |
Has Manual Override |
Yes |
| Inductive |
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
Inductive Load Ratings Ranges |
40 A, 120-277 VAC, 60 Hz |
| Motor (Three-Phase) |
2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz |
Pilot Duty (NO) |
1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges |
1000 VA, 120-277 VAC, 60 Hz |
Rating |
Tamper Resistant, Weather Resistant |
| Skipper Wheel |
Not Included |
Timer Type |
Mechanical |
| Tungsten (NO) |
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
Tungsten Range(s) |
40 A, 120-277 VAC, 60 Hz |
| Wire Size Max |
#8 AWG |
Wire Size Min |
#14 AWG |
| Operating Temperature Max (°C) |
54 |
Operating Temperature Max (°F) |
130 |
| Operating Temperature Min (°C) |
-40 |
Operating Temperature Min (°F) |
-40 |
| Product Depth (in) |
3.625 |
Product Depth (mm) |
92.1 |
| Product Height (in) |
10.125 |
Product Height (mm) |
257.2 |
| Product Width (in) |
6.5 |
Product Width (mm) |
165.1 |
| Unit Carton Height (in) |
4 |
Unit Carton Length (in) |
11.5 |
| Unit Carton Weight (lb) |
3.493 |
Unit Carton Width (in) |
7.06 |
Input Voltage Range(s) 208-277 VAC, 60 Hz Maximum ON/OFF Operations 10
Number Of Circuits 1 Operation Mode 24 hour
Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz Switch Type DPST
Electronic Ballast 16 A, 277 VAC, 60 Hz Enclosure Type Outdoor type 3R metal
Minimum ON/OFF Times 1 hour Maximum Power Consumption (W) 3 W
Wiring Option Terminals Resistive Load Ratings Ranges 40 A, 120-480 VAC, 60 Hz
Warranty Period 1-Year limited Application Compatibilities HID, LED
Electronic Ballast Load Ratings Ranges 16 A, 277 VAC, 60 Hz Has Manual Override Yes
Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz Inductive Load Ratings Ranges 40 A, 120-277 VAC, 60 Hz
Motor (Three-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-277 VAC, 60 Hz Rating Tamper Resistant, Weather Resistant
Skipper Wheel Not Included Timer Type Mechanical
Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz Tungsten Range(s) 40 A, 120-277 VAC, 60 Hz
Wire Size Max #8 AWG Wire Size Min #14 AWG
Operating Temperature Max (°C) 54 Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 3.625 Product Depth (mm) 92.1
Product Height (in) 10.125 Product Height (mm) 257.2
Product Width (in) 6.5 Product Width (mm) 165.1
Unit Carton Height (in) 4 Unit Carton Length (in) 11.5
Unit Carton Weight (lb) 3.493 Unit Carton Width (in) 7.06
