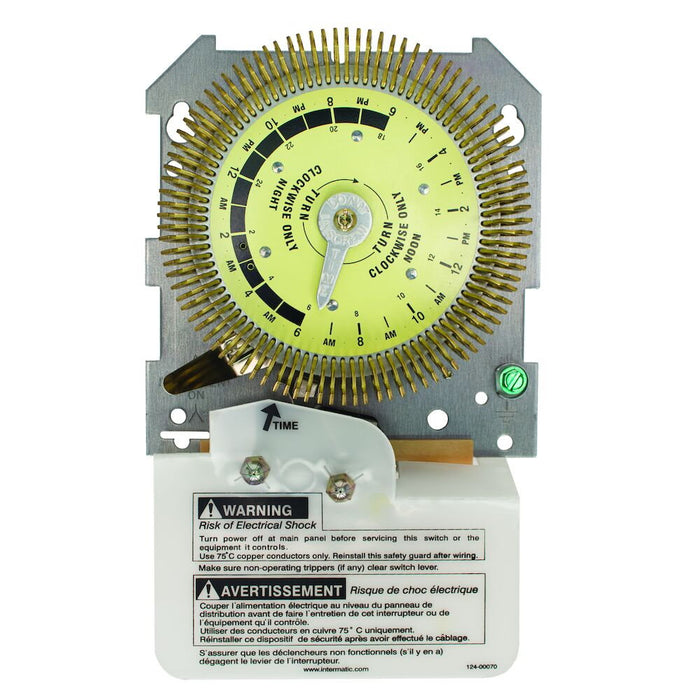

Intermatic - T1905HDM - 24-Hour Heavy-Duty Metal Dial Mechanical Time Switch, Mechanism Only, 125 VAC, 15 Minute Interval

Intermatic T1905HDM 24-Hour Heavy-Duty Metal Dial Mechanical Time Switch, Mechanism Only, 125 VAC, 60Hz, SPDT, 15 Minute Interval

These heavy-duty time switches are designed to handle the toughest environments and have fully encapsulated motors to prevent dust or debris from entering the motor. The ON/OFF trippers are permanently attached to the metal dial to avoid the accidental loss of a tripper. These time switches offer 15-minute intervals, providing up to 96 operations each day.

Features:

• Heavy-duty metal dial and metal enclosure withstands the most punishing environmental conditions
• Models with skipper wheel allow for operations to be omitted on selected days of the week
• Easy-to-set trippers rotate in/out for fast, accurate setting
• Up to 96 operations (48 ON/48 OFF) every 24 hours
• 15-minute intervals between events
• Fully encapsulated motor with protected gears

Applications:

• Indoor Lighting Control
• Timing/Scheduling ON/OFF


Specifications:

Input Voltage Range(s) 125 VAC, 60 Hz Maximum ON/OFF Operations 48
Number Of Circuits 1 Operation Mode 24 hour
Resistive 20 A, 125 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz, 20 A, 480 VAC, 60 Hz Switch Type SPDT
Enclosure Type N/A - Mechanism only Minimum ON/OFF Times 15 min
Maximum Power Consumption (W) 3 W Wiring Option Terminals
Resistive Load Ratings Ranges 20 A, 125-480 VAC, 60 Hz Warranty Period 1-Year limited
Has Manual Override Yes Motor (Three-Phase) 1/2 HP, 125 VAC, 60 Hz, 1 HP, 250 VAC, 60 Hz
Number of Trippers Included 96 Skipper Wheel Not Included
Wire Size Max #12 AWG Wire Size Min #14 AWG
Operating Temperature Max (°C) 54 Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Unit Carton Height (in) 8.5 Unit Carton Length (in) 5.5
Unit Carton Weight (lb) 1.896 Unit Carton Width (in) 3.25
