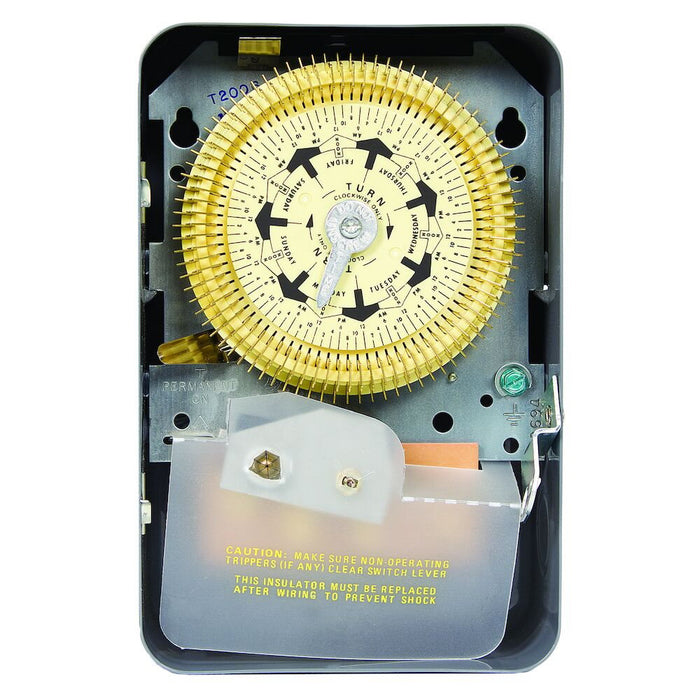

Intermatic - T2006 - 7-Day Mechanical Time Switch, 208-277 VAC, 60Hz, SPDT, Indoor Metal Enclosure, 2 Hour Interval

Intermatic - T2006 - 7-Day Mechanical Time Switch, 208-277 VAC, 60Hz, SPDT, Indoor Metal Enclosure, 2 Hour Interval

by Intermatic
SKU T2006
Sold out
$ 216.95 - $ 216.95
$ 216.95
$ 216.95 - $ 216.95
$ 216.95

Install Manual

These compact 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 20 A of resistive loads and up to six ON/OFF settings per day.

Features:

  • Minimum 2-hour timing intervals
  • Up to 42 ON/OFF operations per week
  • Type 1 rated metal indoor enclosure

Applications:

  • Indoor Lighting Control
  • Timing/Scheduling ON/OFF

Specifications:

Input Voltage Range(s) 208-277 VAC, 60 Hz Maximum ON/OFF Operations 42
Number Of Circuits 1 Operation Mode 7-day
Resistive 20 A, 125 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz Switch Type SPDT
Enclosure Type Indoor type 1 metal Minimum ON/OFF Times 2-Hours
Maximum Power Consumption (W) 3 W Wiring Option Terminals
Resistive Load Ratings Ranges 20 A, 125, 208-277 VAC, 60 Hz Warranty Period 1-Year limited
Has Manual Override Yes Motor (Three-Phase) 1/2 HP, 125 VAC, 60 Hz, 1 HP, 250 VAC, 60 Hz
Number of Trippers Included 84 Skipper Wheel Not Included
Wire Size Max #12 AWG Wire Size Min #14 AWG
Operating Temperature Max (°C) 54 Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 3.4375 Product Depth (mm) 87.3
Product Height (in) 7.875 Product Height (mm) 200
Product Width (in) 5.125 Product Width (mm) 130.2
Unit Carton Height (in) 8.25 Unit Carton Length (in) 5.5
Unit Carton Weight (lb) 3.75 Unit Carton Width (in) 3.5

Input Voltage Range(s) 208-277 VAC, 60 Hz Maximum ON/OFF Operations 42
Number Of Circuits 1 Operation Mode 7-day
Resistive 20 A, 125 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz Switch Type SPDT
Enclosure Type Indoor type 1 metal Minimum ON/OFF Times 2-Hours
Maximum Power Consumption (W) 3 W Wiring Option Terminals
Resistive Load Ratings Ranges 20 A, 125, 208-277 VAC, 60 Hz Warranty Period 1-Year limited
Has Manual Override Yes Motor (Three-Phase) 1/2 HP, 125 VAC, 60 Hz, 1 HP, 250 VAC, 60 Hz
Number of Trippers Included 84 Skipper Wheel Not Included
Wire Size Max #12 AWG Wire Size Min #14 AWG
Operating Temperature Max (°C) 54 Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 3.4375 Product Depth (mm) 87.3
Product Height (in) 7.875 Product Height (mm) 200
Product Width (in) 5.125 Product Width (mm) 130.2
Unit Carton Height (in) 8.25 Unit Carton Length (in) 5.5
Unit Carton Weight (lb) 3.75 Unit Carton Width (in) 3.5

Product Depth (in) 3.4375
Product Height (in) 7.875
Product Width (in) 5.125
