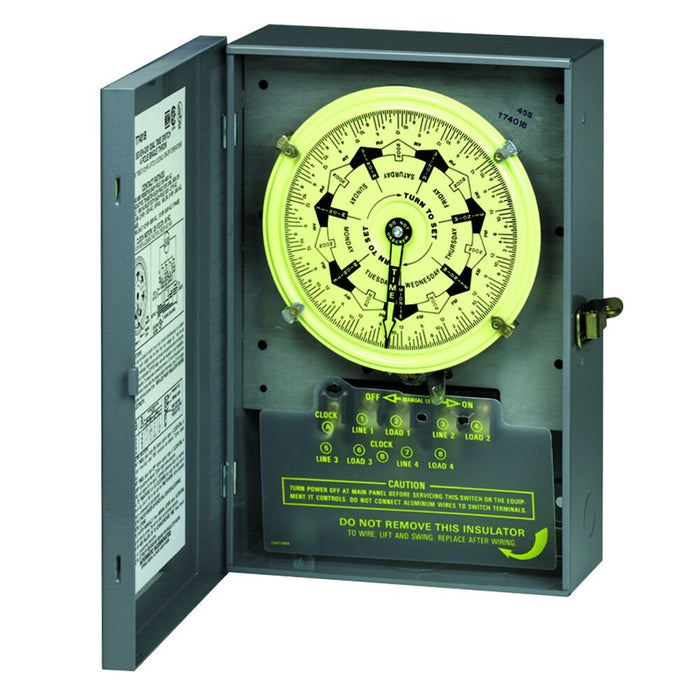

Intermatic T7401BC 7-Day Mechanical Time Switch, 120 VAC, 60Hz, 4-SPST, Indoor Metal Enclosure, 3.5 Hour Interval
These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.
Features:
- Different ON/OFF programs each day of the week
- True 7-day load control with minimum ON/OFF time of 3 1?2 hours
- Separate clock motor terminals for switching loads not on line voltage
- Carry-over automatically rewinds when power resumes
- Minimum of 16-hour carry-over for maintaining preset schedules during power failures
- Available with Type 3R rated outdoor metal enclosure or Type 1 rated indoor metal in gray finish with separate grounding terminal
Applications:
-
Indoor Lighting Control
-
Timing/Scheduling ON/OFF
Specifications:
| Backup Type |
Spring Wound Carry-over |
Input Voltage Range(s) |
120 VAC, 60 Hz |
| Maximum ON/OFF Operations |
28 |
Number Of Circuits |
4 |
| Operation Mode |
7-day |
Resistive |
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz |
| Switch Type |
4-PST/NO |
Electronic Ballast |
16 A, 277 VAC, 60 Hz |
| Enclosure Type |
Indoor type 1 metal |
Minimum ON/OFF Times |
3.5 hours |
| Maximum Power Consumption (W) |
3 W |
Wiring Option |
Terminals |
| Resistive Load Ratings Ranges |
40 A, 120-480 VAC, 60 Hz |
Backup Protection Time |
16 Hours |
| Warranty Period |
1-Year limited |
Application Compatibilities |
HID, LED |
| Backup Restoration Time |
1 Hour for Every 2 Hours Without Power |
Electronic Ballast Load Ratings Ranges |
16 A, 277 VAC, 60 Hz |
| Has Manual Override |
Yes |
Inductive |
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
| Inductive Load Ratings Ranges |
40 A, 120-277 VAC, 60 Hz |
Motor (Single-Phase) |
2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Motor (Three-Phase) |
10 HP, 28 FLA @ 240 VAC, 60 Hz, 7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz |
Motor Single Phase Ranges |
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Motor Three Phase Ranges |
7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz; 10 HP, 28 FLA @ 240 VAC, 60 Hz |
Pilot Duty (NO) |
1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges |
1000 VA, 120-277 VAC, Per Pole, 60 Hz |
Rating |
General Purpose |
| Skipper Wheel |
Not Included |
Timer Type |
Mechanical |
| Tungsten (NO) |
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
Tungsten Range(s) |
40 A, 120-277 VAC, 60 Hz |
| Wire Size Max |
#8 AWG |
Wire Size Min |
#14 AWG |
| Operating Temperature Max (°C) |
54 |
Operating Temperature Max (°F) |
130 |
| Operating Temperature Min (°C) |
-40 |
Operating Temperature Min (°F) |
-40 |
| Product Depth (in) |
3.75 |
Product Depth (mm) |
95.25 |
| Product Height (in) |
13.125 |
Product Height (mm) |
333.3 |
| Product Width (in) |
9 |
Product Width (mm) |
228.9 |
| Unit Carton Height (in) |
6.75 |
Unit Carton Length (in) |
15.75 |
| Unit Carton Weight (lb) |
10.001 |
Unit Carton Width (in) |
11.75 |
Backup Type Spring Wound Carry-over Input Voltage Range(s) 120 VAC, 60 Hz
Maximum ON/OFF Operations 28 Number Of Circuits 4
Operation Mode 7-day Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz
Switch Type 4-PST/NO Electronic Ballast 16 A, 277 VAC, 60 Hz
Enclosure Type Indoor type 1 metal Minimum ON/OFF Times 3.5 hours
Maximum Power Consumption (W) 3 W Wiring Option Terminals
Resistive Load Ratings Ranges 40 A, 120-480 VAC, 60 Hz Backup Protection Time 16 Hours
Warranty Period 1-Year limited Application Compatibilities HID, LED
Backup Restoration Time 1 Hour for Every 2 Hours Without Power Electronic Ballast Load Ratings Ranges 16 A, 277 VAC, 60 Hz
Has Manual Override Yes Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Inductive Load Ratings Ranges 40 A, 120-277 VAC, 60 Hz Motor (Single-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz
Motor (Three-Phase) 10 HP, 28 FLA @ 240 VAC, 60 Hz, 7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz Motor Single Phase Ranges 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Motor Three Phase Ranges 7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz; 10 HP, 28 FLA @ 240 VAC, 60 Hz Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-277 VAC, Per Pole, 60 Hz Rating General Purpose
Skipper Wheel Not Included Timer Type Mechanical
Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz Tungsten Range(s) 40 A, 120-277 VAC, 60 Hz
Wire Size Max #8 AWG Wire Size Min #14 AWG
Operating Temperature Max (°C) 54 Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 3.75 Product Depth (mm) 95.25
Product Height (in) 13.125 Product Height (mm) 333.3
Product Width (in) 9 Product Width (mm) 228.9
Unit Carton Height (in) 6.75 Unit Carton Length (in) 15.75
Unit Carton Weight (lb) 10.001 Unit Carton Width (in) 11.75
