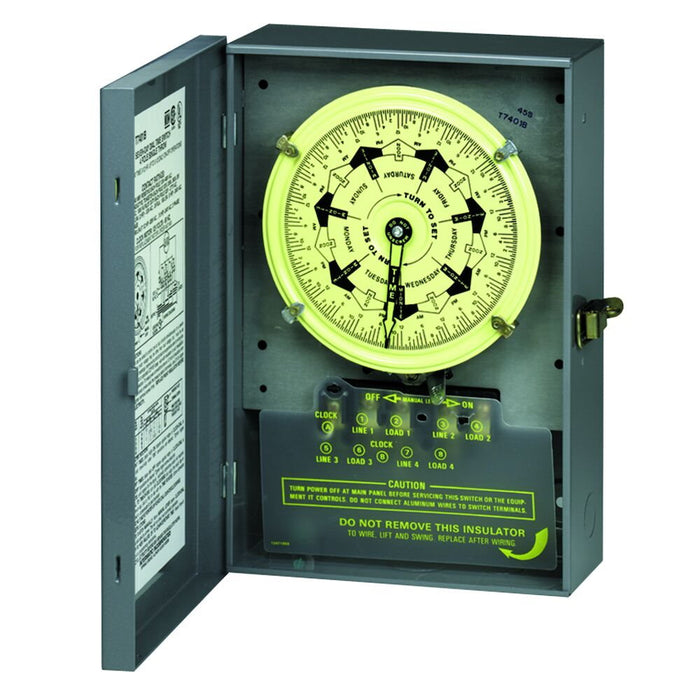

Intermatic T7802B 7-Day Mechanical Time Switch, 208-277 VAC, 60Hz, 2 NO/2 NC, Indoor Metal Enclosure, 3.5 Hour Interval
These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.
Features:
- Different ON/OFF programs each day of the week
- True 7-day load control with minimum ON/OFF time of 3 1?2 hours
- Separate clock motor terminals for switching loads not on line voltage
- Carry-over automatically rewinds when power resumes
- Minimum of 16-hour carry-over for maintaining preset schedules during power failures
- Available with Type 3R rated outdoor metal enclosure or Type 1 rated indoor metal in gray finish with separate grounding terminal
Applications:
-
Indoor Lighting Control
-
Timing/Scheduling ON/OFF
Specifications:
| Input Voltage Range(s) |
208-277 VAC, 60 Hz |
Maximum ON/OFF Operations |
28 |
| Number Of Circuits |
2 |
Operation Mode |
7-day |
| Resistive |
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz |
Switch Type |
2 NO/2 NC |
| Electronic Ballast |
16 A, 277 VAC, 60 Hz |
Enclosure Type |
Indoor type 1 metal |
| Minimum ON/OFF Times |
3.5 hours |
Maximum Power Consumption (W) |
3 W |
| Wiring Option |
Terminals |
Resistive Load Ratings Ranges |
40 A, 120-480 VAC, 60 Hz |
| Warranty Period |
1-Year limited |
Application Compatibilities |
HID, LED |
| Electronic Ballast Load Ratings Ranges |
16 A, 277 VAC, 60 Hz |
Has Manual Override |
Yes |
| Inductive |
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
Inductive Load Ratings Ranges |
40 A, 120-277 VAC, 60 Hz |
| Motor (Three-Phase) |
2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz |
Pilot Duty (NO) |
1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges |
1000 VA, 120-277 VAC, Per Pole, 60 Hz |
Rating |
General Purpose |
| Skipper Wheel |
Not Included |
Timer Type |
Mechanical |
| Tungsten (NO) |
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
Tungsten Range(s) |
40 A, 120-277 VAC, 60 Hz |
| Wire Size Max |
#8 AWG |
Wire Size Min |
#14 AWG |
| Operating Temperature Max (°C) |
54 |
Operating Temperature Max (°F) |
130 |
| Operating Temperature Min (°C) |
-40 |
Operating Temperature Min (°F) |
-40 |
| Product Depth (in) |
3.75 |
Product Depth (mm) |
95.25 |
| Product Height (in) |
13.125 |
Product Height (mm) |
333.3 |
| Product Width (in) |
9 |
Product Width (mm) |
228.9 |
| Unit Carton Height (in) |
9.31 |
Unit Carton Length (in) |
12.63 |
| Unit Carton Weight (lb) |
9 |
Unit Carton Width (in) |
4.13 |
