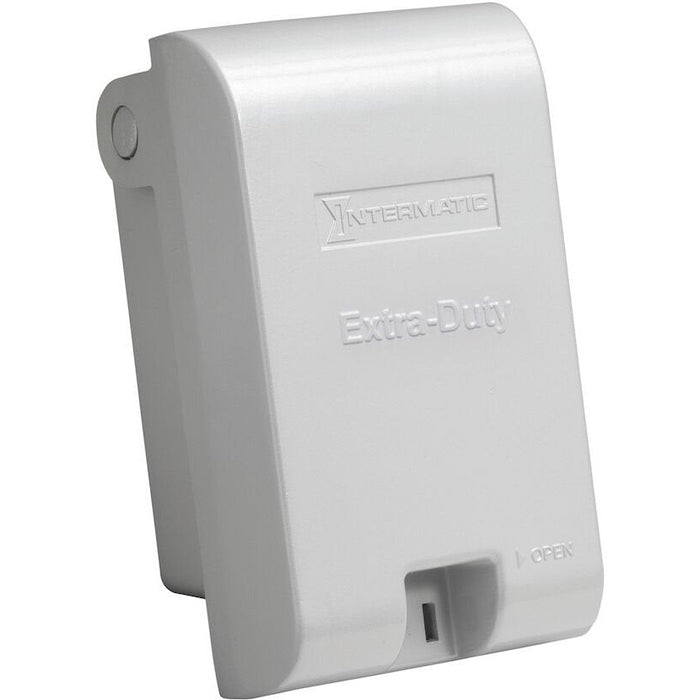

Intermatic - WP3110MXD - Extra-Duty Die-Cast In-Use Weatherproof Cover, Single-Gang, Vrt, 2.75" Gray

Intermatic - WP3110MXD - Extra-Duty Die-Cast In-Use Weatherproof Cover, Single-Gang, Vrt, 2.75" Gray

by Intermatic
SKU WP3110MXD
Sold out
$ 15.88 - $ 15.88
$ 15.88
$ 15.88 - $ 15.88
$ 15.88

Spec Sheet  Install Manual

Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty die-cast aluminum construction ensures long-lasting durability. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Features:

  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts
  • 1?8" (3 mm) thick, neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4" (6 mm) dia shank
  • Impact rated: 12 lbf. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
  • Warranty: 1-year limited

Applications:

  • Engine Block Heaters
  • Receptacle Protection
  • Walk-in Refrigeration Cooler/Freezer

Specifications:

Box Type Single Color Gray
Is Extra-Duty Rated No Hinge Direction Vertical
Warranty Period 1-Year limited Accepted Cord Size Max 1x12 AWG
Insert Types Included WP17 Material Die-Cast Aluminum
Trade Size in Other Product Depth (in) 2 3/4
Product Depth (mm) 70 Product Height (in) 6 3/8
Product Height (mm) 161.9 Product Width (in) 3 4/5
Product Width (mm) 96.8 Unit Carton Height (in) 2.875
Unit Carton Length (in) 6.375 Unit Carton Weight (lb) 0.9
Unit Carton Width (in) 3.875


Box Type Single Color Gray
Is Extra-Duty Rated No Hinge Direction Vertical
Warranty Period 1-Year limited Accepted Cord Size Max 1x12 AWG
Insert Types Included WP17 Material Die-Cast Aluminum
Trade Size in Other Product Depth (in) 2 3/4
Product Depth (mm) 70 Product Height (in) 6 3/8
Product Height (mm) 161.9 Product Width (in) 3 4/5
Product Width (mm) 96.8 Unit Carton Height (in) 2.875
Unit Carton Length (in) 6.375 Unit Carton Weight (lb) 0.9
Unit Carton Width (in) 3.875

Product Depth (in) 2 3/4
Product Height (in) 6 3/8
Product Width (in) 3 4/5
