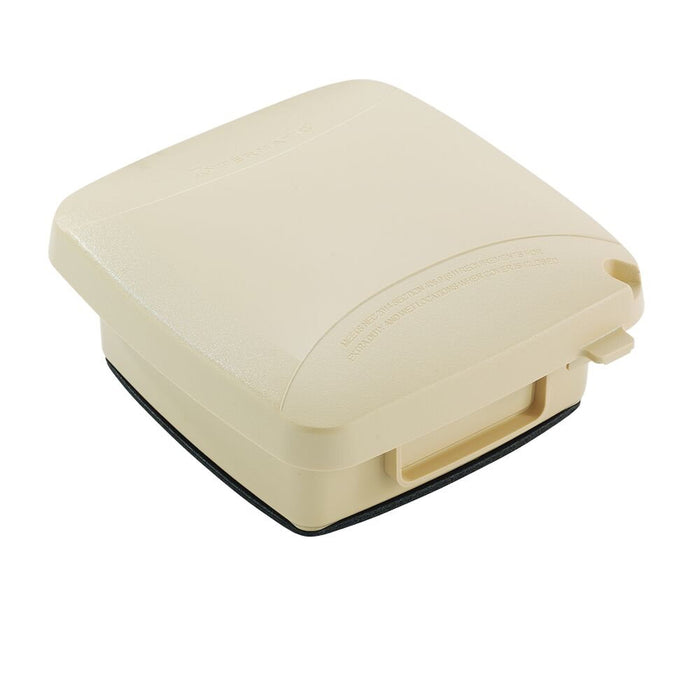

Intermatic - WP5220B - Extra-Duty Plastic In-Use Weatherproof Cover, Double-Gang, Vrt, 2.25" Beige

Intermatic - WP5220B - Extra-Duty Plastic In-Use Weatherproof Cover, Double-Gang, Vrt, 2.25" Beige

by Intermatic
SKU WP5220B
Sold out
$ 19.24 - $ 19.24
$ 19.24
$ 19.24 - $ 19.24
$ 19.24

Spec Sheet

Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Features:

  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1/8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1/4" (6 mm) dia. shank
  • Impact rated: 12 lb. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test
  • Warranty: 1-year limited

Applications:

  • Receptacle Protection

Specifications:

Box Type Double Color Beige
Is Extra-Duty Rated Yes Enclosure Type Outdoor type 3R plastic
Hinge Direction Vertical Warranty Period 1-Year limited
Accepted Cord Size Max 1x10 AWG, 2x12 AWG Cover Gasket 3mm
Has Reinforced Hinge Pin Yes Insert Types Included WP217
Material UV Stabilized Polycarbonate Trade Size in Other
Weatherproof Cover Material UV Stabilized Plastic Product Depth (in) 2 1/4
Product Depth (mm) 57 Product Height (in) 6
Product Height (mm) 154 Product Width (in) 6 5/8
Product Width (mm) 168.3 Unit Carton Height (in) 6.5
Unit Carton Length (in) 6.5 Unit Carton Weight (lb) 0.75
Unit Carton Width (in) 2.75


Box Type Double Color Beige
Is Extra-Duty Rated Yes Enclosure Type Outdoor type 3R plastic
Hinge Direction Vertical Warranty Period 1-Year limited
Accepted Cord Size Max 1x10 AWG, 2x12 AWG Cover Gasket 3mm
Has Reinforced Hinge Pin Yes Insert Types Included WP217
Material UV Stabilized Polycarbonate Trade Size in Other
Weatherproof Cover Material UV Stabilized Plastic Product Depth (in) 2 1/4
Product Depth (mm) 57 Product Height (in) 6
Product Height (mm) 154 Product Width (in) 6 5/8
Product Width (mm) 168.3 Unit Carton Height (in) 6.5
Unit Carton Length (in) 6.5 Unit Carton Weight (lb) 0.75
Unit Carton Width (in) 2.75

Product Depth (in) 2 1/4
Product Height (in) 6
Product Width (in) 6 5/8
