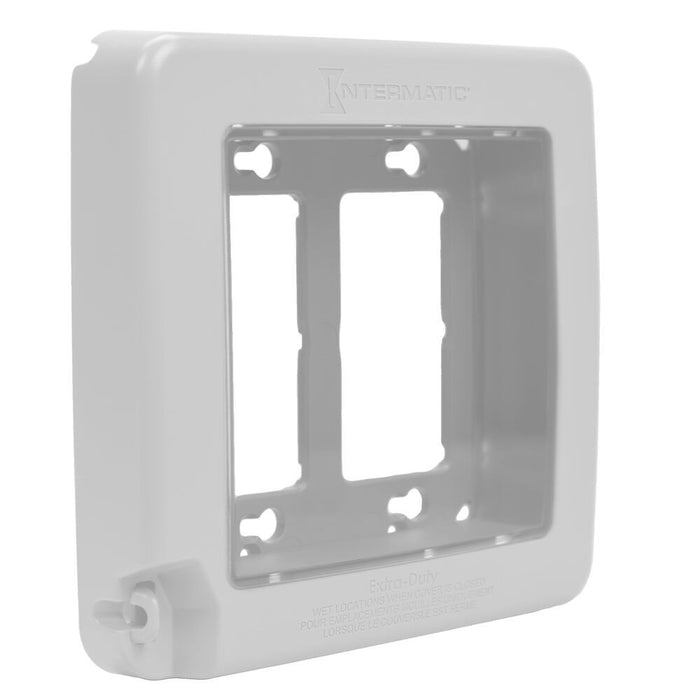

Intermatic - WP7200W - Low-Profile Extra-Duty Plastic In-Use Weatherproof Cover, Double-Gang, Vrt, White

Spec Sheet

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Features:

• 100% Paintable surface
• Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
• CEC Article 26-702 Compliant
• UL Certified for Type 3R outdoor enclosures
• Meets requirements for cold impact testing: -60° F (-51° C)
• Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts
• 1/8" (3 mm) thick, neoprene gasket with slits for mounting screws
• Lockable hasp: All models accept up to 0.19" dia shank
• Impact rated: 12 lbf. impact test to ensure cover remains intact
• Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test

Applications:

• Receptacle Protection

Specifications:

Box Type Double Color Clear, White
Is Extra-Duty Rated Yes Enclosure Type Outdoor type 3R plastic
Hinge Direction Vertical Warranty Period 1-Year limited
Accepted Cord Size Max 1x16 AWG Basic Delivery Free to Customer Yes
Basic Delivery Free to Installer Yes Cover Gasket 3mm
Has Reinforced Hinge Pin Yes Material UV Stabilized Polycarbonate
RoHS Certification Yes SO Customer Ship Surcharge 0.00
SO Installer Ship Surcharge 0.00 SO Store Ship Surcharge 0.00
Ship to Customer Delivery Option 99 - Manually Assign Ship to Installer Delivery Option 99 - Manually Assign
Ship to Store Delivery Option 99 - Manually Assign Store Replenishment Flag Y
Trade Size in #5 Weatherproof Cover Material UV Stabilized Plastic
Product Depth (in) 1.5 Product Depth (mm) 38.1
Product Height (in) 5.5 Product Height (mm) 139.7
Product Width (in) 5.609 Product Width (mm) 142.24
Unit Carton Height (in) 5.45 Unit Carton Length (in) 1.45
Unit Carton Weight (lb) 0.5 Unit Carton Width (in)

Product Depth (in) 1.5
Product Height (in) 5.5
Product Width (in) 5.609
