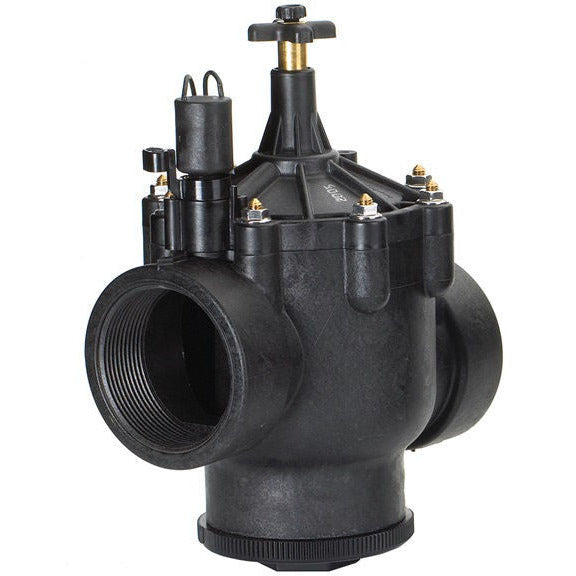

Irritrol - 100 Series Valve Internal Bleed, Flow Control

The Irritrol 100 Series (Century PLUS) is an excellent example of a good valve getting better. Tracing its origin to the highly popular Century Series, the 100 Series delivers reliable performance with a host of enhanced features. Offered in a globe/angle configuration with sizes ranging from one to three inches, the 100 Series features a pressure range of 10-220 psi, optional modular pressure regulation, stainless steel metering, internal and external bleed, a nylon reinforced EPDM double-beaded diaphragm and an anti-contamination design for dirty water applications (available on all 102 Models).

TOUGH, GLASS-REINFORCED NYLON, STAINLESS STEEL AND BRASS CONSTRUCTION
Withstands high temperatures and system surges under pressure for long-term reliability

220 PSI PRESSURE RATING
Prevents water hammer and system damage in high-pressure installations

INTERNAL AND EXTERNAL BLEED (FLUSH MODE)
Manual operation

EXTERNALLY REMOVABLE SELF-CLEANING METERING SYSTEM
Provides consistent performance in recycled-water applications

ACCEPTS OMNIREG MODULAR PRESSURE REGULATOR
Ensures consistent performance

ADDED FEATURES

• Flow control allows precise flow adjustment and manual shutoff
• EPDM valve seat seal
• Encapsulated injection-molded solenoid with a captive hex plunger
• Positive O-ring seal on inlet plug prevents leaks without damaging seal
• threads
• Molded-in and anchored studs allow positive bonnet
• attachment and removal
• Brass flow control stem on 2- and 3-inch models
• Easily serviced without removal from the system
• Five-year warranty

OPERATING SPECIFICATIONS

• Flow range: 5-300 GPM
• Pressure range: 10-220 psi; 10-100 psi (102 models)

ELECTRICAL SPECIFICATIONS

• Solenoid: 24 V ac
• Inrush volt-amp: 24 V ac-9.6 VA
• Inrush current: .4 amp (102 models: .48 amp)
• Holding volt-amp: 24 V ac-4.8 VA
• Holding current: .2 amp (102 models: .24 amp)

OPERATING SPECIFICATIONS
• Flow range: 5-300 GPM
• Pressure range: 10-220 psi; 10-100 psi (102 models)
ELECTRICAL SPECIFICATIONS
• Solenoid: 24 V ac
• Inrush volt-amp: 24 V ac-9.6 VA
• Inrush current: .4 amp (102 models: .48 amp)
• Holding volt-amp: 24 V ac-4.8 VA
• Holding current: .2 amp (102 models: .24 amp)

H: 6 3/4”, W: 3 5/8”, D: 4 3/4”
