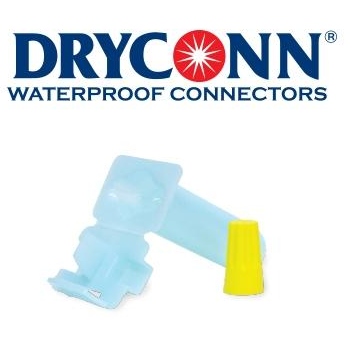

King Innovation - 20525 - DBYN-600, 100pc. Box

King Innovation - 20525 - DBYN-600, 100pc. Box

by King Innovation
SKU 20525
$ 140.99 - $ 140.99
$ 140.99
$ 140.99 - $ 140.99
$ 140.99

Spec Sheet

FEATURES & BENEFITS:

  • Perfect for use in two-wire decoder systems and low voltage lighting applications
  • UL 486D Listed for waterproof and direct bury connections
  • Pre-filled with dielectric silicone sealant that never hardens
  • UV resistant for above ground applications
  • Two part system includes Contractors' Choice® Yellow Nut and silicone filled tube
  • Snap fit lid provides strain relief

PRODUCT SPECIFICATIONS & MEASUREMENTS:

Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)
Connector Size: 2 23/32" x 1 1/2"
Wire Type: Copper/Copper
Wire Range: Min #22/Max #8
Temperature Rating: -105°C (221° F)
Silicone Sealant Temperature: -45°F to 400°F
Tube Construction: Sunlight and Impact Resistant Blended Polypropylene
UL Designation:GTSR2

Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)
Connector Size: 2 23/32" x 1 1/2"
Wire Type: Copper/Copper
Wire Range: Min #22/Max #8
Temperature Rating: -105°C (221° F)
Silicone Sealant Temperature: -45°F to 400°F
Tube Construction: Sunlight and Impact Resistant Blended Polypropylene
UL Designation:GTSR2
