Rain Bird - PCT07 - Pressure Compensating Threaded Low-Flow Bubbler - 7.0 GPH, Violet

• 7.0 GPH Pressure Compensating Threaded Low-Flow Bubbler
• Point-Source Medium-Flow Emitters for Watering Larger Shrubs and Trees
• Use as a bubbler on 1/2 in. PVC riser
• 1/2 in. FPT threads screw onto a variety of risers, spray heads, and fittings, delivering point-source, pressure compensating flow
• Uniform flow throughout a wide pressure range (15 to 50 psi; 1.03 to 3.45 bar)
• Robust design - durable plastic construction is UV-resistant and color coded caps identify flow rate

Rain Bird's Pressure Compensating Bubblers are ideal for a variety of applications including shrub plantings, trees, containers, annual color, and flower beds.

Rain Bird's new pressure compensating bubblers are designed for a rugged environment. Offered in 5 gph, 7 gph, and 10 gph models, the bubbler style outlet and medium-flow options provide more flexibility for commercial applications. The 1/2 in. FPT threaded inlet makes these devices ideal for installations using a PVC pipe and schedule 80 risers.

Durable – UV-resistant durable plastic construction with 1/2 in. FPT threads screws onto PVC pipe or schedule 80 risers.

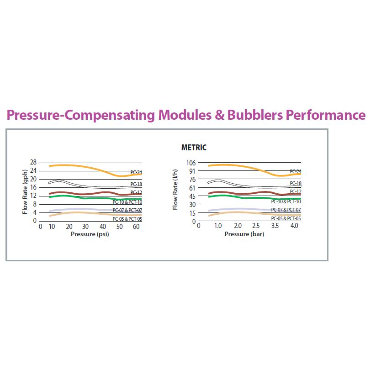

Flexible – Pressure compensating design delivers uniform flow throughout a wide pressure range (15-50 psi). Ideal for a variety of applications including shrubs, trees, containers and large pots.

Easy to Identify – Color-coded caps make identifying the flow rate easy. Light Brown = 5gph, Violet = 7gph and Green = 10gph.

• Emission Device Type: Bubbler
• Inlet Type: FPT
• Flow Rate: 7.0 gph
• Operating Range:
• Pressure: 15 to 50 psi (1.03 to 3.45 bar)
• Required Filtration: 100 mesh (150 micron)
• Specifications:
• Inlet: 1/2 in. FPT threads are specifically designed to be used with:
• 1/2 in. PVC risers, schedule 80 risers
• MDCF50MPT 1/2 in. MPT compression fittings (16-18mm)
• XFDMA050 1/2 in. MPT insert fittings (17mm)
• Rain Bird 1800 Series spray head with fitting
• Xeri-Pop spray head with fitting
• UNI-Spray or shrub adapter

More Information
Model PCT07
Emission Device Type Bubbler
Inlet Type FPT
Flow Rate 7.0 gph
Operating Range
Pressure: 15 to 50 psi (1.03 to 3.45 bar)
Required Filtration: 100 mesh (150 micron)
Specifications
Inlet: 1/2 in. FPT threads are specifically designed to be used with:

1/2 in. PVC risers, schedule 80 risers
MDCF50MPT 1/2 in. MPT compression fittings (16-18mm)
XFDMA050 1/2 in. MPT insert fittings (17mm)
Rain Bird 1800 Series spray head with fitting
Xeri-Pop spray head with fitting
UNI-Spray or shrub adapter
