Prier - P-164FW - Quarter Turn - Anti-Siphon Wall Hydrant - 3/4" Wirsbo - Diamond

The PRIER P-164 has all the characteristics of the historically proven PRIER wall hydrants with the added benefit of an easy operating quarter-turn handle. The P-164 features a soft grip operating handle for easy operation in wet conditions or cold weather. It also features a compression type seal, not the brittle plastic discs available in competitors products.

Ordering the P-264 gives you the same style hydrant but with a vandal-proof extended lock shield and operating key. The P-164 is available in stock lengths from 1 ½" to 24", with special lengths available by request.

• ASSE 1019 and C-UPC approved
• Quarter-turn soft-grip coated cast aluminum handle
• Anti-siphon vacuum breaker with backflow check valve
• Aluminum vacuum breaker cap with increased durability
• Integral cast flange with built-in drainage pitch
• Enclosed screw holes easily secure mounting screws
• Solid brass body, valve stem cap, seat and stem ends
• Satin nickel plated body maintains attractive finish
• Stainless steel seat washer screw and handle screw
• Durable ACME threads secure stem at seat end
• Lock shield cap for stronger valve design
• AFG teflon with graphite packing for easy maintenance
• Standard “OO” size seat washer
• Spout aligning mark
• Slim seat inlet for easier installation

ASSE 1019 and C-UPC approved
Quarter-turn soft-grip coated cast aluminum handle
Anti-siphon vacuum breaker with backflow check valve
Aluminum vacuum breaker cap with increased durability
Integral cast flange with built-in drainage pitch
Enclosed screw holes easily secure mounting screws
Solid brass body, valve stem cap, seat and stem ends
Satin nickel plated body maintains attractive finish
Stainless steel seat washer screw and handle screw
Durable ACME threads secure stem at seat end
Lock shield cap for stronger valve design
AFG teflon with graphite packing for easy maintenance
Standard “OO” size seat washer
Spout aligning mark
Slim seat inlet for easier installation

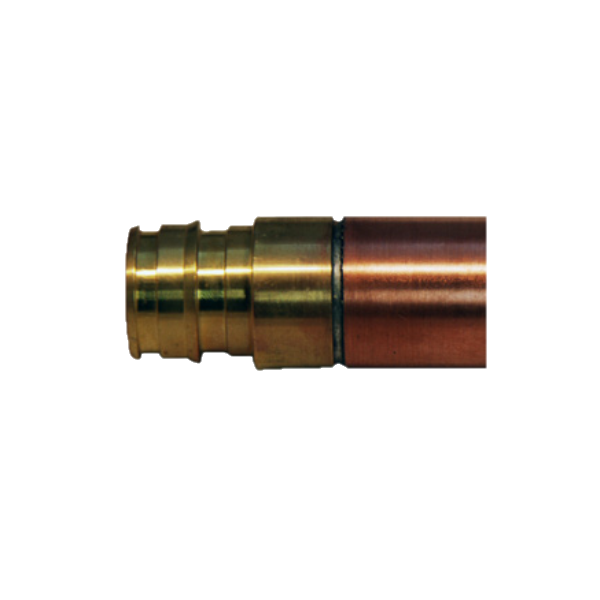

Connection Type: 3/4" Wirsbo
