Rain Bird - RB8HFLT - 8H Half Circle MPR Flat Spray Pattern

Spec Sheet

Trusted for decades, Rain Bird MPR Nozzles are installed by more contractors than all other brands combined. MPR Nozzles simplify the design process by allowing sprinklers with various arcs and radii to be mixed on the same circuit while maintaining even water distribution rates. They fit all Rain Bird spray heads and shrub adapters.

Sort Quicker, Install Faster, Check Easier!

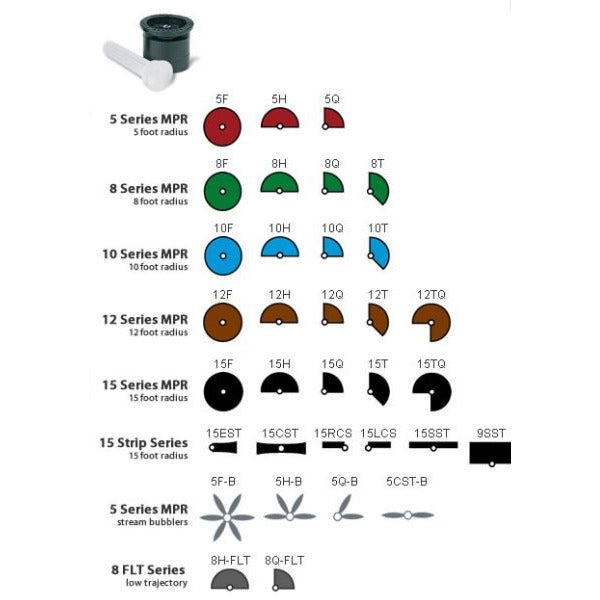

• Quickly identify radius and arc with Top Color-coded nozzles.
• Top Color-coding makes it easy to verify proper nozzle installation, even when system is not operating.

Additional Features

• 8 ft. flat spray pattern MPR nozzle
• Matched precipitation rates across sets and across patterns in 5 Series, 8 Series, 10 Series, 12 Series, and 15 Series for even water distribution and design flexibility
• Blue fine-mesh (.02" x .02") filter screens (shipped with nozzles) maintain precise radius adjustment and prevent clogging
• Stainless steel adjustment screw to adjust flow and radius
• Fits all Rain Bird sprinklers and shrub adapters
• Lower water flow allows more spray heads per zone

* Rain Bird recommends using 1800 PRS spray heads to maintain optimum nozzle performance in higher pressure situations.

• Nozzle Pattern: Half circle
• Nozzle Radius: 8 ft
• Nozzle Type: Fixed spray
• Nozzle Series: MPR
• Specifications:
• Spacing: 3 to 20 feet (0,9 to 4,6 m)
• Pressure: 15 to 30 psi (1 to 2,1 bar)
• Optimum pressure: 30 psi (2,1 bar)*
• * Rain Bird recommends using 1800 PRS spray heads to maintain optimum nozzle performance in higher pressure situations.

Model 8HFLT
Nozzle Pattern Half circle
Nozzle Radius 8 ft
Nozzle Type Fixed spray
Nozzle Series MPR
Specifications
Spacing: 3 to 20 feet (0,9 to 4,6 m)

Pressure: 15 to 30 psi (1 to 2,1 bar)

Optimum pressure: 30 psi (2,1 bar)*

* Rain Bird recommends using 1800 PRS spray heads to maintain optimum nozzle performance in higher pressure situations.
