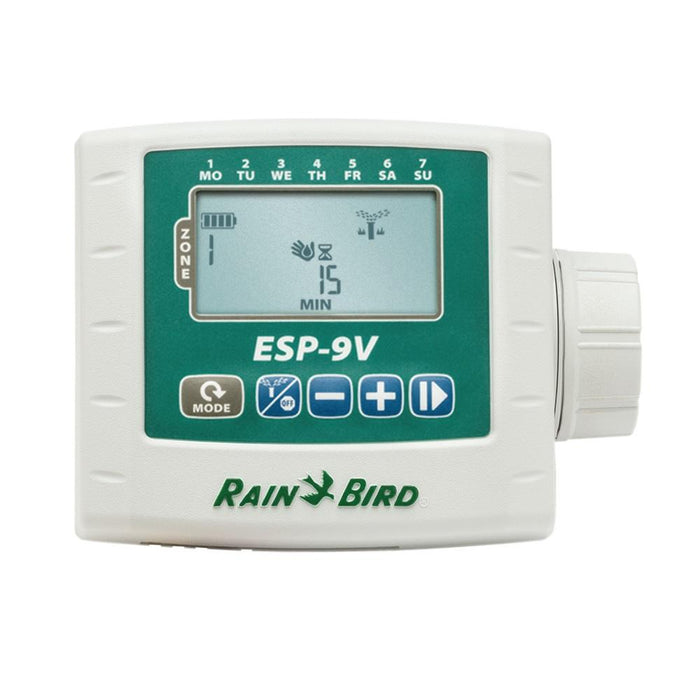

Rain Bird - ESP9V1 - ESP-9V Battery-Operated Controller, 1 Zone - Rain Bird

Rain Bird - ESP9V1 - ESP-9V Battery-Operated Controller, 1 Zone

by Rain Bird
SKU ESP9V1
$ 79.77 - $ 79.77
$ 79.77
$ 79.77 - $ 79.77
$ 79.77

Spec Sheet   Install Manual

Tougher, Easier and Longer Lasting


Get reliable automatic irrigation control when you don’t have AC power with the ESP-9V Series Battery-Operated Controller. The ESP-9V’s waterproof case and dual-sealed battery chamber ensure long life even when installed in a wet, muddy valve box. In harsh environment testing the ESP-9V outlasted the competition by 70%. After being submerged in water at alternating extreme hot and cold temperatures the ESP-9V was still going strong after the competition failed in less than two days.

Easier to Program. Common programming features are easily accessed on one screen, making programming quick and easy. The LCD screen is 85% larger than the Hunter® Node and the programming icons are big and easy to understand. Manual watering is easy with a dedicated button.

Longer Lasting. The ESP-9V operates for one year using one 9-volt alkaline battery, or more than two years with two 9-volt alkaline batteries.

Controller Features:

  • Waterproof case ensures long life even when installed in a valve box
  • Dual-sealed battery chamber with rubber insert and O-ring keeps water out
  • IP68 certified for protection against dust and water intrusion
  • Large LCD display (85% larger than Hunter® Node) with easy-to-navigate user interface
  • Non-volatile (100-year) program memory keeps your schedule safe even if batteries are dead
  • Mounts in valve box using solenoid mounting bracket, using two screws affixed to the valve box or on a wall using the optional wall-mount kit
  • The plastic controller case has outstanding resistance to weather, yellowing and aging
  • Sensor input with bypass override
  • Master valve/pump-start circuit (multi-zone units only)
  • Rain sensor bypass for all zones
  • Controller operates with one or two 9-volt alkaline batteries

Scheduling Features:

  • Common programming features are easily accessed on one screen, making programming quick and easy
  • At-a-glance programming eliminates confusion by showing the run time, start times and watering days for each zone
  • Automatic zone stacking ensures that only one valve irrigates at a time. If zones are scheduled to water at the same time, the ESP-9V will automatically irrigate the lower number zone first.
  • Dedicated manual watering button for easy manual watering
  • Manually water all zones or a single zone on demand
  • One-touch manual start allows you to start a full programmed irrigation cycle with the touch of a button
  • Contractor Rapid Programming™ automatically copies the start times and watering days from zone 1 to all remaining zones at initial setup
  • Run times, start times and watering days are customizable by zone
  • Contractor Default™ allows user to save and restore the irrigation schedule

Operating Specifications:

  • Operates for one year using one 9-volt alkaline battery or more than two years with two 9-volt alkaline batteries
  • Station Timing: 1 to 240 minutes (per start time)
  • 6 independent start times per zone
  • 4 watering day options per zone: Custom days of week, Cyclic (every 1 to 30 days), ODD calendar days, and EVEN calendar days
  • Delay watering: 1 to 9 days
  • Seasonal adjust: 10% to 200%

Certifications:

  • cULus, FCC, IC, CE, RCM (AMCA), IP68, RoHS

Controller Hardware:

  • Solenoid mounting bracket for easy mounting on a valve
  • Rubber cover protects the controller face

Dimensions:

  • Width: 5.35"
  • Height: 4.04"
  • Depth: 2.42"
  • Weight: 2 lbs

LCD Screen Size:

  • Width: 2.25" (5,72 cm)
  • Height: 1.25" (3,18 cm)



Over the years, a select few products have risen above the rest with their unparalleled performance. We're thrilled to share these gems with you. Whenever you spot the "From the Frog" badge, rest assured it's more than just a mark of quality—it's a symbol of our dedication and careful consideration in choosing the best for you.

More Information
Model ESP9V1
Zones/Stations 1
Indoor/Outdoor Indoor/Outdoor
Controller Type Battery-operated, Fixed Station
Dimensions
Width: 5.35" (13,59 cm)
Height: 4.04"(10,26 cm)
Depth: 2.42" (6,15 cm)
LCD Screen Size

Width: 2.25" (5,72 cm)
Height: 1.25" (3,18 cm)
Features Battery Backup, Battery-programmable, Manual Watering, Non-volatile Memory, Rain Delay, Seasonal Adjust
Programs 1
Program Day Cycles Custom days of the Week, Odd days, Even days, Cyclical (water every x days)
Start Times per Zone/Program 6
Electrical Specifications Operates for one year using one 9-volt alkaline battery or more than two years with two 9-volt alkaline batteries
Certifications cULus, FCC, IC, CE, RCM (AMCA), IP68, RoHS

Width: 5.35"
Height: 4.04"
Depth: 2.42"
Weight: 2 lbs
