Rain Bird - 100PEB - PEB Inlet Inline Plastic Industrial Irrigation Valve

Spec Sheet Install Manual

*One Solenoid Handle Per Order

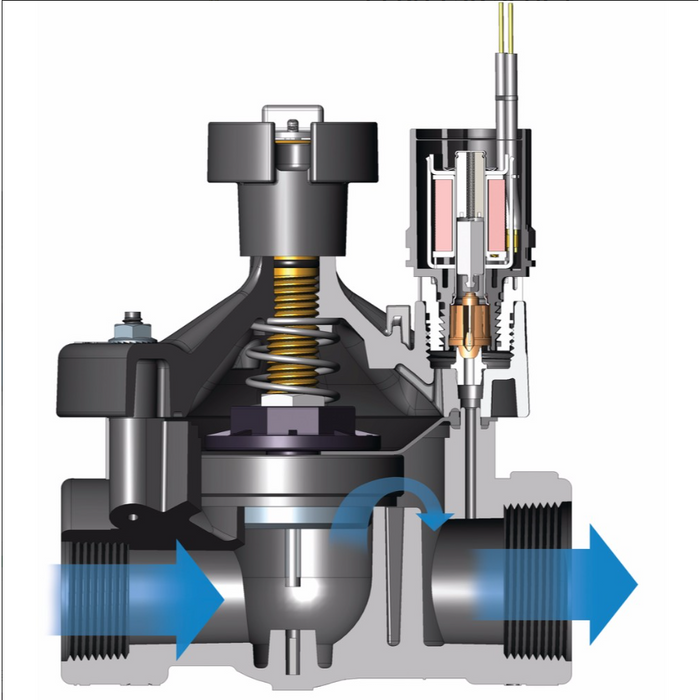

The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.

• Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance.
• Globe configuration.
• Normally closed, forward flow design.
• Slow closing to prevent water hammer and subsequent system damage.
• Low flow capability for a wide range of applications.
• One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
• Flow control handle adjusts water flows as needed.
• Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first.
• Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs.
• Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads

• Temperature: Up to 150° F (66° C)
• 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
• 0.41 A (9.8 VA) inrush current
• 0.28 A (6.7 VA) holding current
• Solenoid coil resistance: 24 Ohms, nominal

Specifications:

• Inlet Size: 1
• Inlet Thread: Female NPT
• Flow Control: 0.25 - 200
• Pressure Rating/Range: 20 - 200

More Information
Model 100PEB
Valve Size 1 in
Valve Type Inline
Material Plastic
Valve Inlet/Outlet Configuration NPT Female x NPT Female Threaded
Valve Series PEB/PESB
Operating Temperature Up to 150° F (66° C)
Dimensions
6 1/2" x 4" x 4"
(16,5 cm) x (10,2 cm) x (10,2 cm)

Electrical Specifications
24 VAC 50/60 Hz (cycles per second) solenoid
Inrush current: 0.41A (9.9VA)
Holding current: 0.14A (3.43VA)
Coil resistance: 30-39 Ohms

Flow Range
Flow without PRS-D option: 0.25 to 200 GPM (0,06 to 45 m3/h; 0,02 to 12,60 l/s)

Flow with PRS-D option: 5 to 200 GPM (1,14 to 45 m3/h; 0,32 to 12,60 l/s)

Operating Pressure 20 to 200 psi (1,4 to 13,8 bar)
