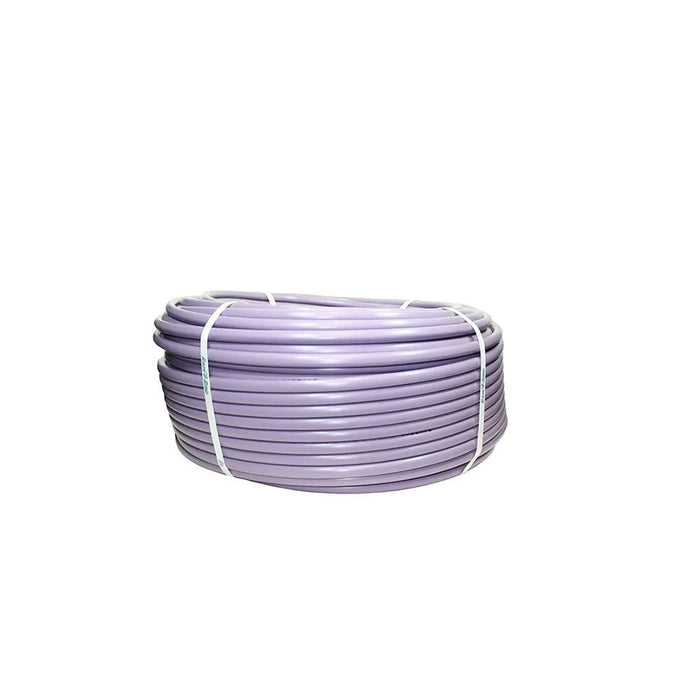

Rain Bird - XFDP-09-18-500 - XFD On-Surface Purple Dripline 0.9 GPH, 18" Spacing, 500 ft. Coil

Spec Sheet  Install Manual

The most flexible, pressure-compensating inline emitter tubing available to irrigate ground cover, dense plantings, hedge rows and more. Extra flexible tubing for fast, easy installation. Dual-layered tubing (brown over black or purple over black) provides unmatched resistance to chemicals, UV damage, and algae growth. Patented emitter design provides for increased reliability. Longer lateral runs than the competition.

NEW XFD Dripline Coil Labels

• Easier to read
• Useful jobsite information
• Peel off insert label to place in valve box or controller for future tubing identification

NEW Product Features

• Easy to read laser etched information on the tubing.
• Round emitter holes
• Colored stripes designate flow rate
  • Black = 0.9 gph (3.5 l/hr)
  • Tan = 0.6 gph (2.3 l/hr)

• Extra flexible tubing for fast, easy installation
•

  Dual-layered tubing (brown over black or purple over black) provides unmatched resistance to chemicals, UV damage and algae growth
•

  Patented emitter design provides for increased reliability
•

  Longer lateral runs than competition
•

  Unique material offers significantly greater flexibility, allowing tighter turns with fewer elbows for easier installation
•

  Choice of flow rates, spacing and coil lengths provides design flexibility for a variety of non-turfgrass applications
•

  Use an Air/Vacuum Relief Valve Kit when installation is below soil (pg 147)

Pressure: 8.5 to 60 psi
Flow rates: 0.6 gph and 0.9 gph
Temperature: Water up to 100° F (37.8C); Ambient up to 125° F (51.7C)
Required filtration: 120 mesh

Outside diameter: 0.634" (16.1 mm)
Inside diameter: 0.536" (13.6 mm)
Wall thickness: 0.049" (1.2 mm)
Spacing: 12" or 18"
Lengths: 100', 250', and 500' coils
