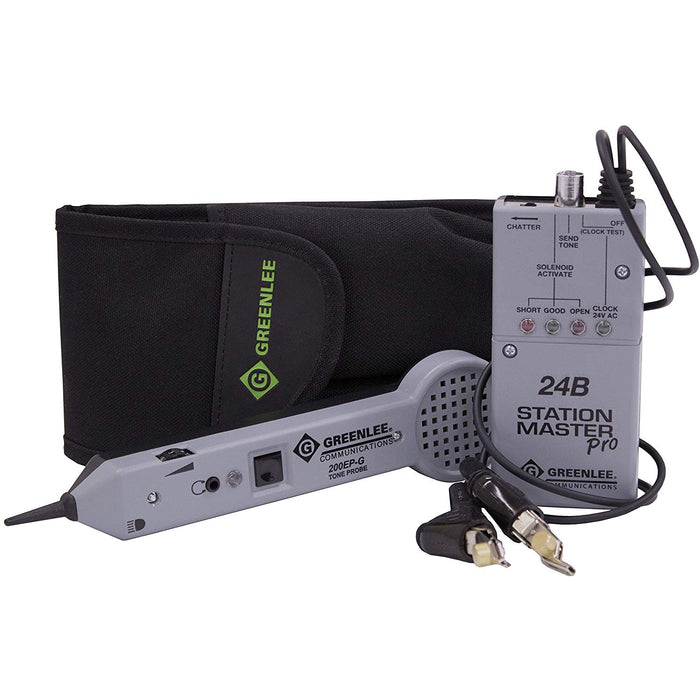

Tempo Communications - 24BK - Station Master Pro Kit - Test Irrigation Systems (Formerly Greenlee Communications)

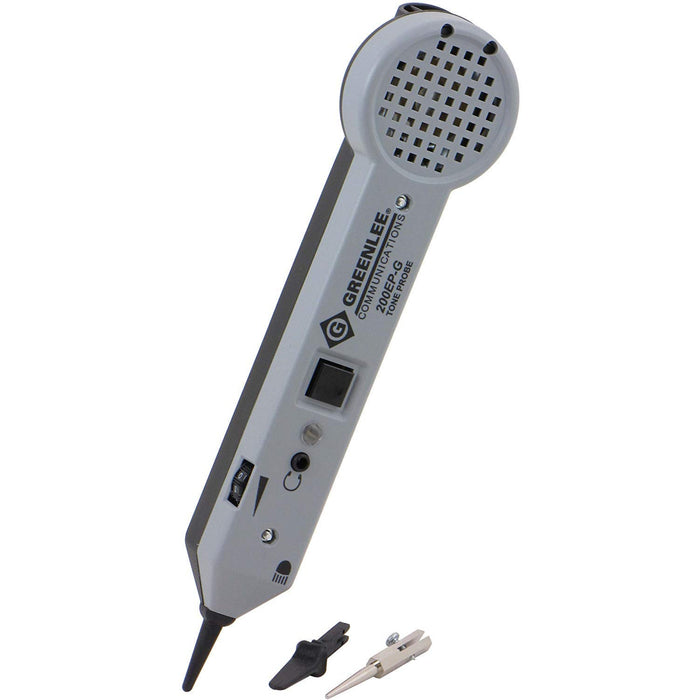

Tempo continues its excellence in irrigation system troubleshooting with the introduction of the new Model 24B station master pro. The upgraded station master pro is a portable, battery-operated irrigation system diagnostic tester combining solenoid activation and wire identification. The easy-to-understand LEDs notify the technician if sufficient voltage is being supplied by the controller and the condition of the solenoid. The solenoid activation mode is used to activate valve solenoids either from the controller or at the valve, along with testing continuity of the solenoids. In chatter mode the station master pro will turn the solenoid off and on about once per second to aid in locating the valve by ear. In addition, the station master has the added functionality of providing tone generation to identify wires which can be traced with any tempo 200 series inductive amplifier. The model 24B operates on two 9-Volt alkaline batteries and can safely hold open a working solenoid for hours. The test leads come equipped with premium "bed-of-nails" and piercing pin bent nose clips for use on insulated wires, allowing the technician to connect the unit without cutting or stripping the wires. The unit is housed in a high impact ABS plastic case designed to withstand the rigors of daily use in the field.

• Use for troubleshoot irrigation systems
• Activates and cycles solenoids
• Send tone to identify wires
• Test solenoids for continuity
• Easy-to-understand LEDs

Battery 9 V Alkaline
Battery Life 3 HR Continuous
Includes 700C Carrying Case
Maximum Distance Range To Activate One Solenoid
12 AWG Loop 3000.000 - 13000.000 FT
14 AWG Loop 2000.000 - 8500.000 FT
18 AWG Loop 500.000 - 3000.000 FT
Minimum Battery While Testing 10.5 VDC
Minimum Voltage For Clock LED 15 VAC
Replacement Part 700C Carrying Case
Solenoid Circuit Recharge 2.5 S
StorageOperatingTemperature 32 - 122 DEG F
Sub Brand Station Master
Type Pro
Voltage Rating 28 VAC
