RAB Lighting - BULLET12B - 120V LED Bullet Spotlight

12W LED equivalent to 75W BR30/halogen/wide flood
Mount as an uplight or downlight on a RAB Mighty Post or junction box
Microprismatic diffusion lens for smooth and even light distribution
100,000-hour LED Lifespan

Technical Specifications

Listings

• UL Listing: Suitable for wet locations
• IESNA LM-79 & LM-80 Testing: RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have been received the Department of Energy "Lighting Facts" label.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.

LED Characteristics

• LEDs: Multi-chip, high-output, long-life LEDs
• Lifespan: 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculation
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011.

Electrical

Driver: Innovative integrated driver technology with 120V TRIAC and ELV dimming

Construction

• Thermal Management: Superior heat sinking with external Air-Flow fins
• Housing: Die-cast aluminum housing, lens frame and mounting plate
• Reflector: Semi-specular, vacuum-metalized polycarbonate
• Lens: Microprismatic diffusion lens for smooth and even light distribution
• Mounting: Heavy-duty mounting arm with "O" ring seal and stainless steel screws
• Gaskets: High-temperature silicone gaskets
• Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contain no VOC or toxic heavy metals.
• Green Technology: Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

Listings

UL Listing: Suitable for wet locations
IESNA LM-79 & LM-80 Testing: RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have been received the Department of Energy "Lighting Facts" label.
DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
LED Characteristics

LEDs: Multi-chip, high-output, long-life LEDs
Lifespan: 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculation
Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011.
Electrical

Driver: Innovative integrated driver technology with 120V TRIAC and ELV dimming

Construction

Thermal Management: Superior heat sinking with external Air-Flow fins
Housing: Die-cast aluminum housing, lens frame and mounting plate
Reflector: Semi-specular, vacuum-metalized polycarbonate
Lens: Microprismatic diffusion lens for smooth and even light distribution
Mounting: Heavy-duty mounting arm with "O" ring seal and stainless steel screws
Gaskets: High-temperature silicone gaskets
Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contain no VOC or toxic heavy metals.
Green Technology: Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

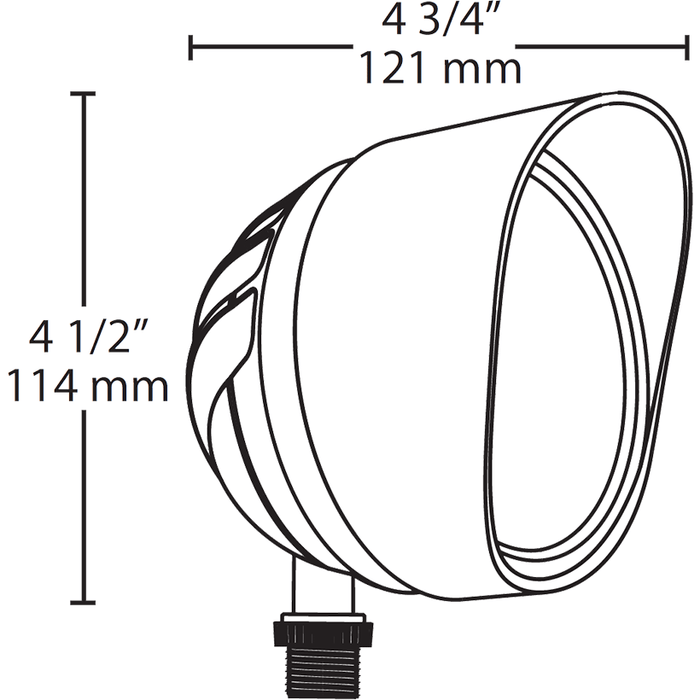

Height: 4 1/2"
Length: 4 3/4"
