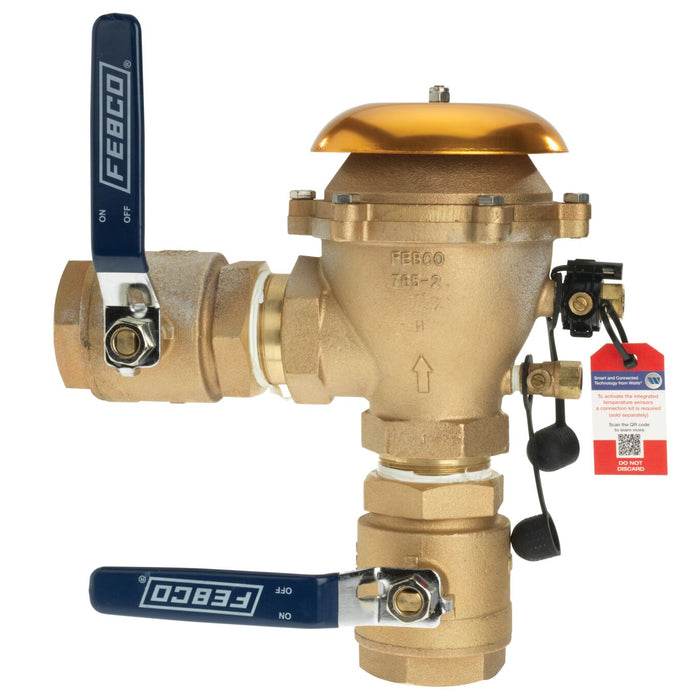

Febco 2" Bronze Pressure Vacuum Breaker Backflow Preventer, Quarter Turn Shutoffs, Freeze Sensor 765-QT-FZ PVB 2

Febco 2" Bronze Pressure Vacuum Breaker Backflow Preventer, Quarter Turn Shutoffs, Freeze Sensor 765-QT-FZ PVB 2

by Febco
SKU T765HBV
Sold out
$ 786.00
$ 786.00 - $ 786.00
$ 786.00
$ 786.00
$ 786.00 - $ 786.00
$ 786.00
 More payment options

This 2 inch pressure vacuum breaker backflow preventer is used to protect against health hazard and non-hazard backsiphonage of toxic or non-toxic liquids in industrial plants, cooling towers, laboratories, laundries, swimming pools and irrigation systems. It has a bronze body, spring loaded check valve, air relief valve with opening port, two resilient seated shutoffs and test cocks, and NPT end connections. This assembly meets the specifications of the USC FCCCHR Manual. The maximum working pressure is 150 psi (10.3 bar) and temperature range is 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C). The pressure vacuum breaker includes a freeze sensor for use with SentryPlus Alert® technology to signal when ambient temperature approaches the freeze threshold. Activated through an add-on connection kit, the sensor also triggers freeze alerts to facility personnel. Connection kit available for building/irrigation management system (BMS/IMS).

  • Includes a freeze sensor for use with SentryPlus Alert technology to signal when temperature nears the freeze point
  • Freeze alerts feature available with add-on connection kit
  • Bronze body for durability
  • Designed for minimum head loss
  • Plastic bonnet protects valve body from freeze damage
  • Internal parts serviceable in line from top of unit
Specifications
Backflow Preventer Type Vacuum Breaker
Body Finish Rough Bronze
Body Material Bronze
Body Pattern N-Pattern
Brand FEBCO
Buy American Act Compliant NO
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether Yes
Disc Material Nitrile
EAN 643925582888
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 2 IN
Inlet Connection Size-Metric 50 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 10.00
Maximum Working Pressure-PSI 150
Meter Type No Meter
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outlet Connection Size 2 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number T765HBV
Polymer Coating No
Pressure Operation Continuous
Protection Type Backsiphonage
Seat Material Bronze
Series 765
Strainer No
