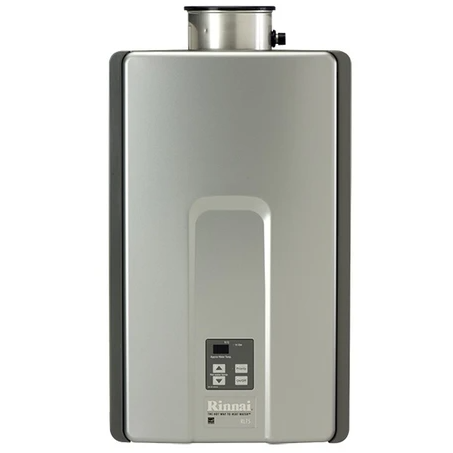

Rinnai - RL94iP - Propane Tankless Water Heater, 9.4 Gallons Per Minute

Spec Sheet   Install Manual

Features

• Energy Factor of .82 for Natural Gas and Propane
• Built-in Rinnai Circ-LogicTM recirculation program cycles an external pump at pre-set intervals and temperatures to maximize efficiency and comfort (see brochure for more details)
• Certified for Installation in Manufactured (Mobile) Homes
• Enhanced scale detection lessens possibility of serious, long-term damage to unit
• Temperature lock function prevents accidental or unauthorized changes to water temperature
• Complies with South Coast Air Quality Management District 14 ng/J or 20 ppm NOx emission levels

Specifications

Installation Type Indoor
Minimum/Maximum BTU 10,300 / 199,000 Natural Gas and Propane
Energy Factor 0.82 for Natural Gas and Propane
Temperature Range Residential: 98°F - 140°F (37°C - 60°C)
Commercial: 98°F - 185°F (37°C - 85°C)**
Minimum Activation Rate 0.4 gpm (1.5 lpm)
Flow Rate (70° / 50° Temperature Rise) 4.7 / 6.6 gpm (17.8 / 29.2 lpm)
Hot Water Flow Rate Range 0.26 - 9.8 gpm (0.98 - 37.1 lpm)
Controller Standard: MC-91-2US
Optional: MC-100-1, BC-100V-1, MC-195T-US, MCC-91-2
Ultra Lox NOx No
Warranty (Residential)* Limited 12-year on heat exchanger, 5-year on parts, 1-year on labor (5-year optional on labor)
Warranty (Commercial)* Limited 5-year on heat exchanger, 5-year on parts, 1-year on labor (2-year optional on labor)
Mobile Home Certified Yes
Valves Shipped in Box Yes
High Altitude Approved Up to 10,200 ft. (3,109 m)
Certifications AHRI and CSA
Venting Options Concentric
Tankless Rack System (TRS/TRW) Compatible No
1/2" Gas Line Compatible*** Yes

Width: 14 Inches (355.6 mm)
Height: 23 Inches (584.2 mm)
Depth: 9 Inches (228.6 mm)
Weight 46.3 lbs (21.0 kg)
