Product Overview

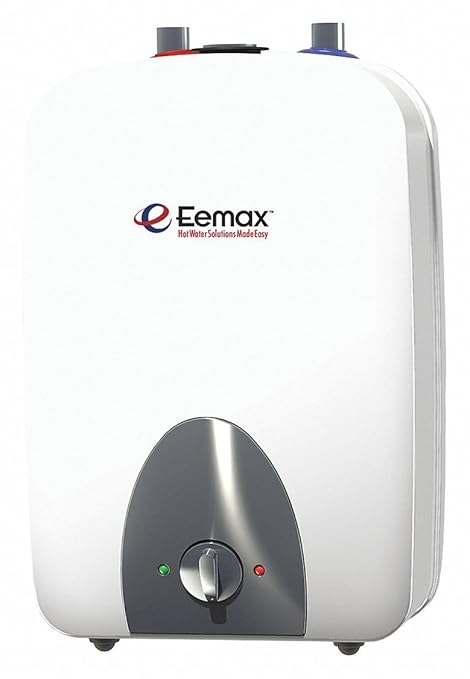

The Eemax EMT4 is a 4-gallon electric mini-tank water heater for point-of-use hot water at a compatible sink, lavatory, wet bar, breakroom, garage utility sink, or similar fixture. The unit stores a small volume of heated water near the point of use, which can reduce the wait caused by long hot-water runs from a central heater.
This model operates on 120V power and uses 1/2 in. NPT male water connections at the top of the unit. It may be installed as a nearby point-of-use heater or as a booster in a properly designed hot-water line when the application matches the manual. Confirm the available space, upright mounting location, electrical circuit, pressure requirements, drain routing for the included T&P relief valve, and expected hot-water demand before ordering. The tank must be filled and air purged from the plumbing before power is applied to avoid damaging the element. Follow the Eemax manual and applicable plumbing and electrical requirements.
Key Features:
- 4-gallon electric mini-tank water heater
- 120V operation
- 1.5kW / 1,500W heating element
- Glass-lined steel tank
- Adjustable external temperature dial
- 1/2 in. NPT male water connections
- Indoor point-of-use installation
Common Uses:
- Under-sink point-of-use hot water
- Office breakrooms and lavatories
- Garage, utility, or shop sinks
- Compatible booster applications for remote fixtures
Technical Specifications:
-
Model: EMT4
-
Product Type: Electric storage mini-tank water heater
-
Tank Volume: 4 gallons
-
Voltage: 120V
-
Wattage: 1.5kW / 1,500W
-
Amperage: 12A
-
Water Connections: 1/2 in. NPT male
-
Maximum Operating Pressure: 150 PSI
-
Dimensions: 14 in. H x 14 in. W x 12.25 in. D
-
Location: Indoor use; protect from freezing
Compatibility and Installation Notes:
Install upright with the water connections pointing up. Confirm electrical circuit capacity, plumbing connections, pressure relief requirements, drain routing, and service clearance. Fill the tank and purge air before energizing the heater.
FAQ
Does this unit require a T&P relief valve?
Yes. A temperature and pressure relief valve must be installed according to the manual and applicable requirements.
Can the EMT4 be mounted sideways?
No. This mini tank should be installed upright with the water connections at the top.
Is this a whole-home water heater?
No. It is a compact point-of-use mini tank for compatible fixture applications.
