Spec Sheet

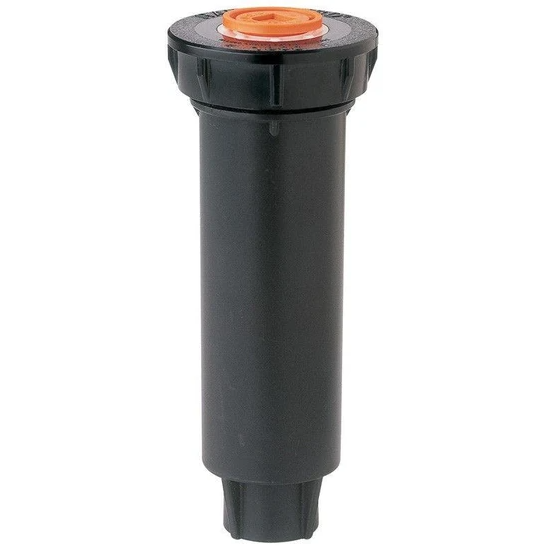

Installed in parks and backyards across the globe, Rain Bird's 1800 Series is the #1 commercial-grade irrigation spray head brand in the world.
Chosen for its reliability, heavy-duty materials, and versatility, the 1800 Series offers a broad selection of pop up heights and nozzle combinations for watering shrubs, small lawns, and irregularly shaped planting areas.
All models feature Rain Bird's patented pop-up mechanism with heavy-duty stainless steel spring for dependable out-of-sight retraction, plus an exclusive co-molded wiper seal for unmatched resistance to grit, pressure, and extreme environments.
The Perfect Pair for Pressure Regulation
Rain Bird’s pressure-regulating stem (PRS) saves up to a gallon of water per minute.
We offer three perfectly paired combinations of PRS spray bodies and high-efficiency nozzles. Each pair is designed to work together to give you the best possible performance across your entire irrigation system — all while saving water.
Features:
-
All Rain Bird pressure regulating spray bodies are WaterSense certified by ICC-ES
-
PATENTED PRS pressure regulator built into stem. No parts to be installed at the site. Saves time and money
-
Maintains constant outlet pressure at 45 psi (3.1 bar) at varying inlet pressures regardless of nozzles used
-
30 psi is recommended for optimal spray nozzle performance, 45 psi is recommended for optimal rotary nozzle performance
- Nozzle not included
-
Co-molded wiper seal provides unmatched resistance to grit, pressure and the environment
-
Constructed of time-proven UV-resistant plastic and corrosion-resistant stainless steel parts, ensuring long product life
-
Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
-
Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
-
Five-Year Trade Warranty
Additional features:
- Maintains constant outlet pressure at 45psi. Ensures maximum nozzle performance, even with varying inlet pressures. Maintains constant pressure regardless of nozzles used.
- Unlike competitive PRS sprays, Rain Bird PRS sprays adjust to fluctuating pressure, optimizing flow and promoting a more consistent spray pattern.
- Ensures consistent performance throughout zone if nozzle is removed or damaged. Keeps plant life covered by other spray heads properly irrigated.
- Ends misting and fogging caused by high pressure. Stops water waste. Ensures necessary watering occurs in high pressure or wind conditions.
- Traps water in lateral pipes in elevation changes of up to 14 feet (4,2 m). Reduces wear on system components by minimizing water hammer during start-up.
- Prevents drainage from spray heads at lower elevations. Stops water waste. Ends landscape damage due to flooding and/or erosion.
- Even stronger retract spring to accommodate elevation changes up to 14 feet (4,2 m). One of the strongest springs in the industry.
- Co-molded, pressure-activated, multi-functional wiper seal assures positive seal without excess “flow-by” which enables more heads to be installed on the same valve.
- All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and
- maintenance of the sprinkler.
- Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, assuring long product life.
- Nozzle Type: No Nozzle Included
Dimensions:
- Body height: 6" (15.2 cm)
- Exposed surface diameter: 2 1/4" (5.7 cm)
- Pop-up Height: 4 in
- 1/2" (15/21) female threaded inlet
Specifications:
- Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.50 gpm (0.11 m3/h; 1.80 l/m) otherwise
- Regulates nozzle pressure to an average 45 psi (3.1 bar) with inlet pressures of up to 70 psi (4.8 bar)
- Spacing: 2.5 to 24 feet (4.0 to 7.3 m)
- Pressure: 15 to 70 psi (1.7 to 4.8 bar)
